BioEntry R2
Compact Fingerprint & RFID Reader for Centralised Access Control.
Overview
BioEntry R2 is Suprema's compact fingerprint and RFID reader, purpose-designed for centralised access control deployments alongside Suprema's CoreStation intelligent controller. Packed in a 50 mm mullion-type housing, BioEntry R2 pairs high-definition fingerprint capture with dual-frequency RFID in a form factor that fits any door frame. With OSDP V2 RS-485 slave communication, BioEntry R2 brings biometric authentication to existing access control infrastructure without replacing head-end controllers — ideal for multi-door enterprise and government deployments.
Key Features
OSDP V2 centralised control
RS-485 OSDP V2 slave interface — pairs with CoreStation or any OSDP-compliant access controller for encrypted, bidirectional communication.
Mullion-type 50 mm design
50.1 mm width fits standard door frames and narrow mullion positions — no custom cutouts or wall modifications required.
Dual-frequency RFID
Reads 125 kHz EM and 13.56 MHz MIFARE / DESFire EV1-3 / FeliCa alongside fingerprint credentials.
MINEX-certified fingerprint
ISO 19794-2 / ANSI 378 fingerprint algorithm — MINEX certified for government-grade biometric accuracy.

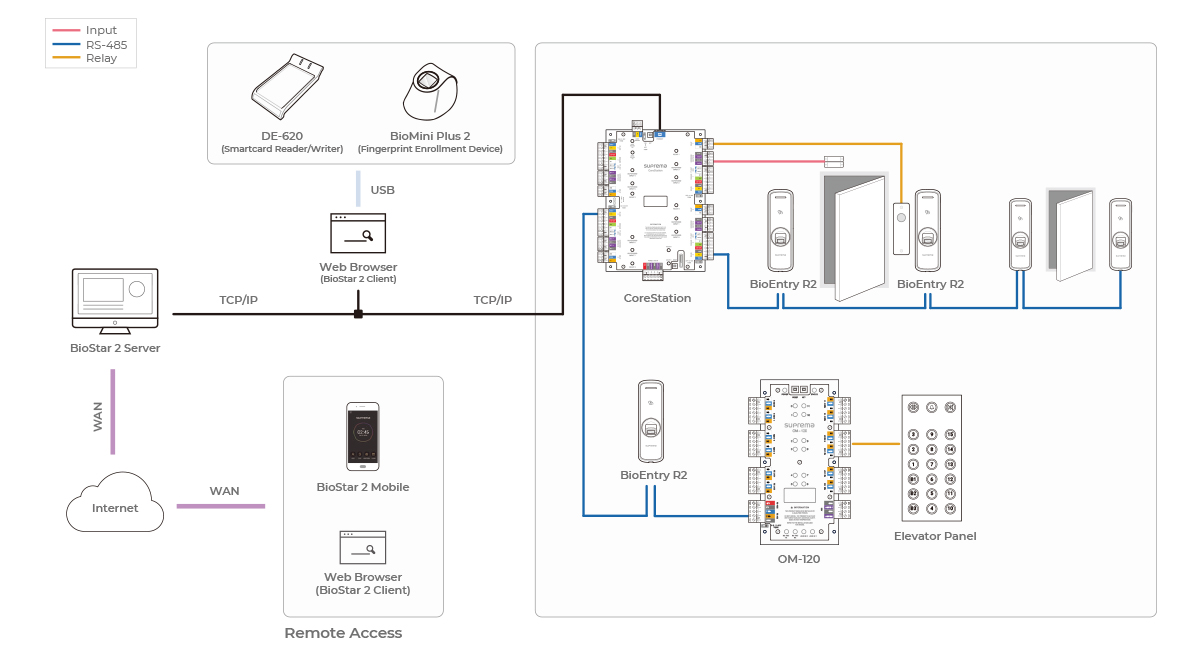

Gallery
Specifications
| General | |
|---|---|
| CPU | 1.0 GHz |
| RAM / Flash | 32 MB RAM / 32 MB Flash |
| Crypto Chip | Supported |
| Dimensions | 50.1 × 164 × 38 mm |
| Weight | 158 g (device) + 39 g (bracket) |
| Operating Temperature | -20 °C to 50 °C |
| Storage Temperature | -40 °C to 70 °C |
| Operating Humidity | 0–80% non-condensing |
| IP Rating | IP65 |
| Authentication | |
|---|---|
| Fingerprint Standard | ISO 19794-2 / ANSI 378 (MINEX certified) |
| RFID (Low Frequency) | 125 kHz EM |
| RFID (High Frequency) | 13.56 MHz MIFARE / MIFARE Plus / DESFire EV1-3 / FeliCa |
| RFID Read Range | MIFARE/DESFire: 50 mm · EM/FeliCa: 30 mm |
| Mobile | Not supported |
| Connectivity | |
|---|---|
| RS-485 | 1ch Slave — OSDP V2 compliant |
| Ethernet | Not supported |
| Wiegand | Not supported |
| Power | 12 V DC Max 0.2 A |
Related Products
BioEntry P2
Compact IP Fingerprint Device.
CoreStation
Intelligent Door Controller.
