CoreStation

Intelligent Door Controller.

Overview

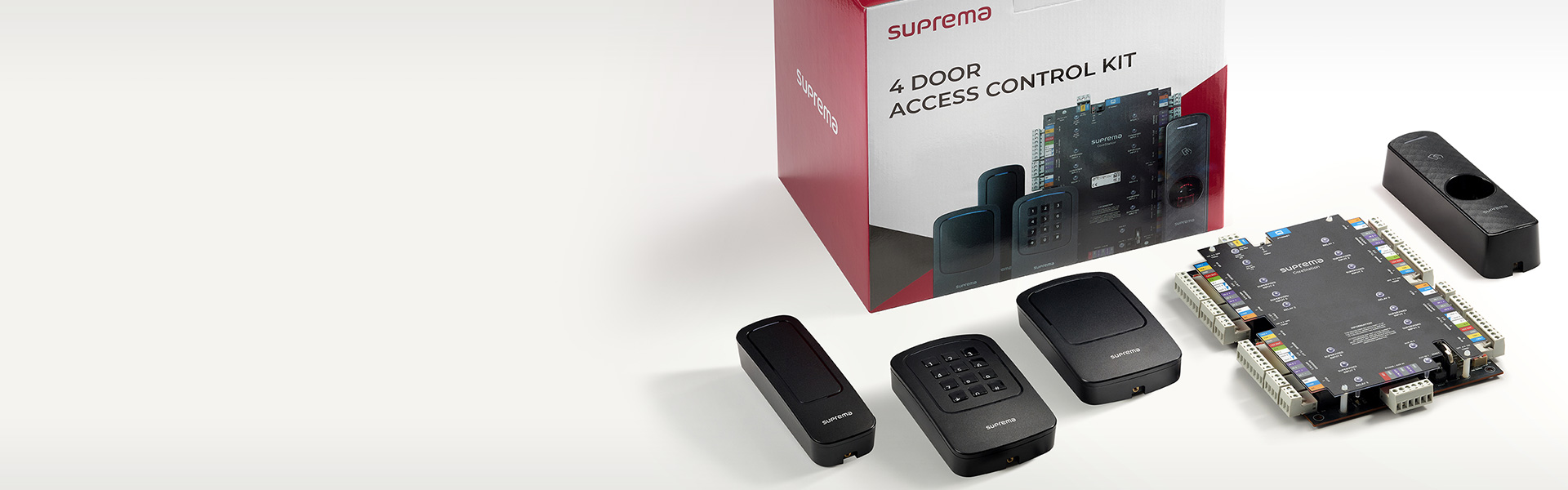

CoreStation is Suprema's flagship intelligent biometric access controller, combining centralised door management with on-board fingerprint matching at 400,000 comparisons per second. A single CoreStation manages up to 4 doors — and with DM-20 door module expansion, a networked deployment can scale to 132 access points under a single BioStar 2 instance. Built for enterprise security, CoreStation supports TLS 1.2 encrypted server communication, AES-256 biometric data encryption, OSDP 2.0 reader interfaces and elevator control via the OM-120 output module.

Key Features

500,000 user capacity

Enterprise-scale user database with 400,000 fingerprint match/sec — authentication without compromise at peak throughput.

On-board biometric matching

Fingerprint verification happens locally on the controller — authentication continues during network outages with no cloud dependency.

132-access-point scalability

One CoreStation manages 4 doors natively; up to 132 access points with DM-20 door module expansion across a single BioStar 2 instance.

TLS 1.2 & AES-256 encryption

Encrypted server communication and biometric data storage — meeting the highest enterprise and government security standards.

Specifications

Access Control
Door Capacity 4 doors (up to 132 with DM-20 expansion)
User Capacity 500,000
Fingerprint Matching Speed 400,000 comparisons/sec
Event Log Supported
Simultaneous Authentication 8 devices in 1 second
Security
Server Encryption TLS 1.2
Biometric Data Encryption AES-256
Secure Boot Supported
Reader Interface OSDP 2.0 / Wiegand
3rd Party Readers Supported (Wiegand)
Connectivity
Ethernet 10/100 Mbps
RS-485 4ch
Wiegand 4 inputs / 4 outputs
Elevator Control Via OM-120 output module
Platform BioStar 2 / BioStar Air
