Biometric Readers

BioStation 3

The New Door Access Experience.

USER EXPERIENCE

A new door access experience.

47% smaller than FaceStation F2, yet delivering the largest variety of credential options of any terminal in its class. Face, fingerprint, QR code, mobile NFC/BLE and multi-technology RFID — every credential, one device, one experience.

MULTI-CREDENTIAL

Multiple contactless access methods.

BioStation 3 reads DataMatrix, QR Code, Aztec, Micro QR, PDF417, Code39, Code128, UPC and EAN — alongside NFC/BLE mobile credentials and multi-technology RFID. Ideal for visitor flows, ticketed access, contractor onboarding and any environment where the credential is the moment.

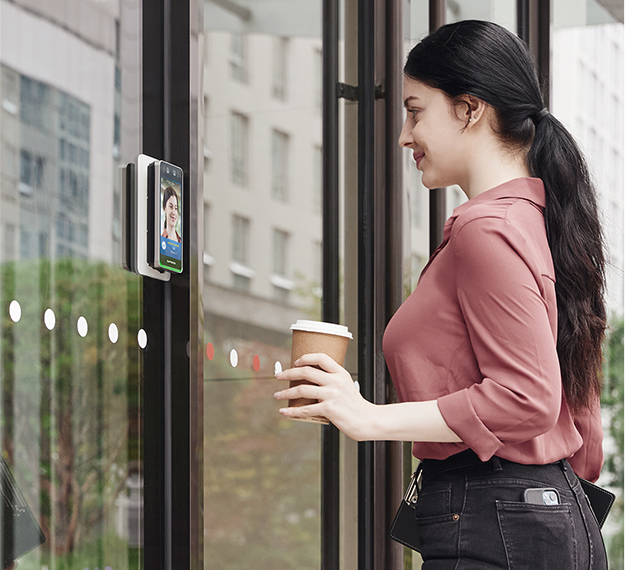

Face. AI facial authentication with sub-0.2 s matching and liveness detection.

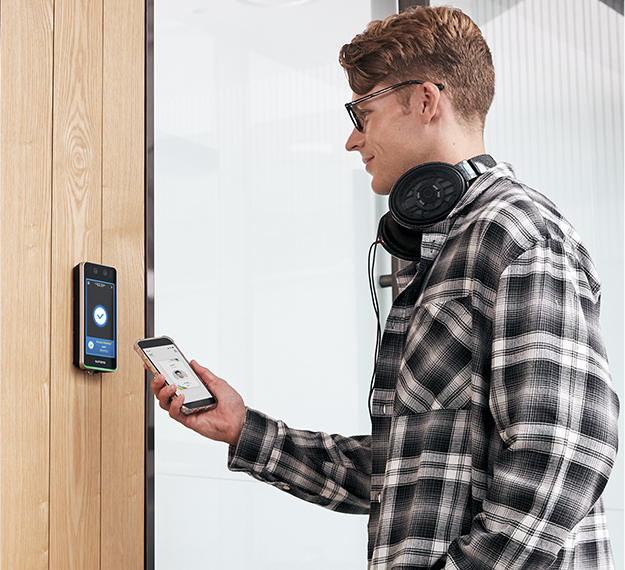

Mobile (NFC + BLE). Phone-as-credential via Suprema Mobile Access — no physical card needed.

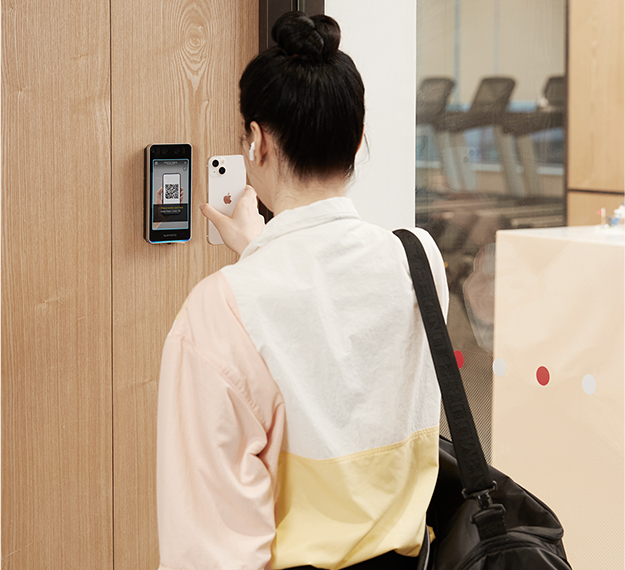

QR / Barcode. DataMatrix, QR, Aztec, PDF417, Code39/128, UPC, EAN — visitor passes and contractor codes.

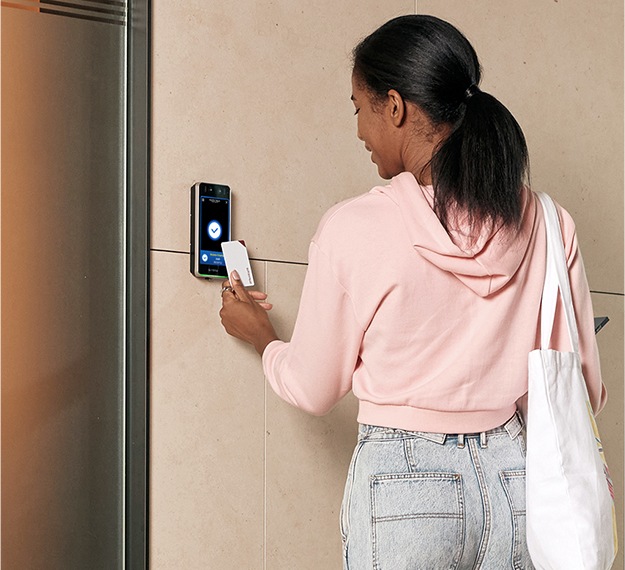

RFID + Scrambled PIN. 125 kHz EM, 13.56 MHz MIFARE/DESFire/FeliCa, plus scrambled on-screen PIN keypad.

INSTALLATION

Perfect for any door, any business.

Easy to install and scale — from small offices to massive enterprise buildings. 47% smaller than FaceStation F2, IP65 + IK06 rated for indoor or outdoor doors. Three install modes cut wiring effort to the minimum.

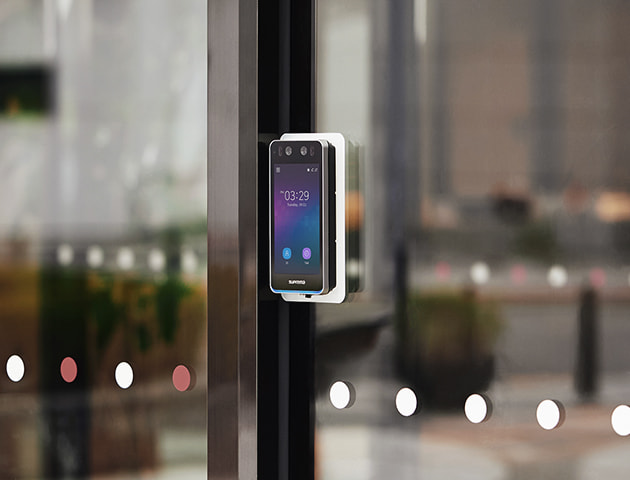

Modern glass lobbies. Slim profile sits flush against glass and steel doorways.

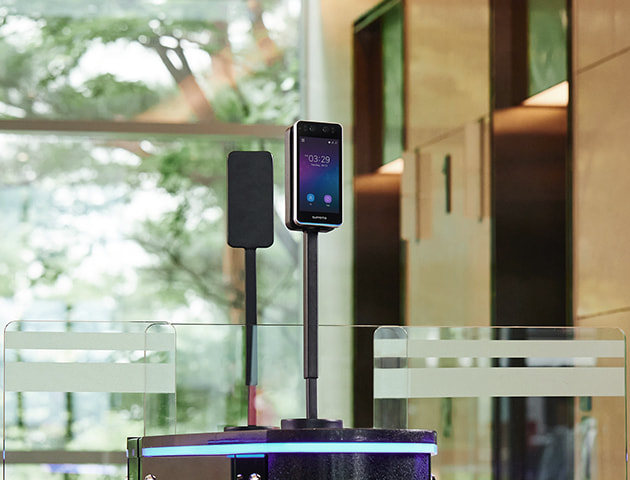

Enterprise offices. Compact form factor fits standard mullion installations without re-cutting frames.

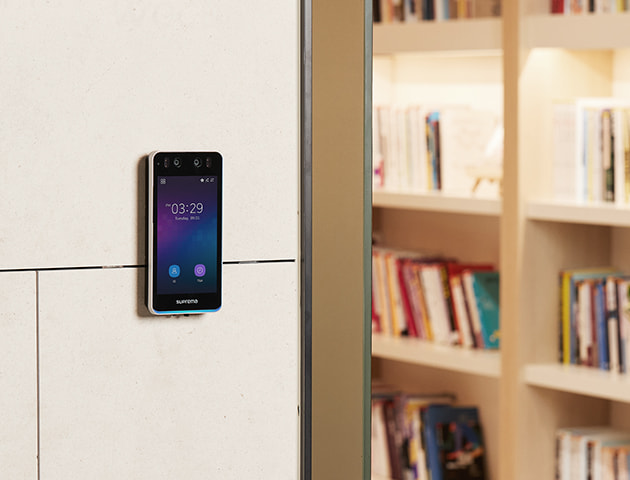

Workplace turnstiles. Drops into turnstile uprights — same wiring as the previous-gen reader.

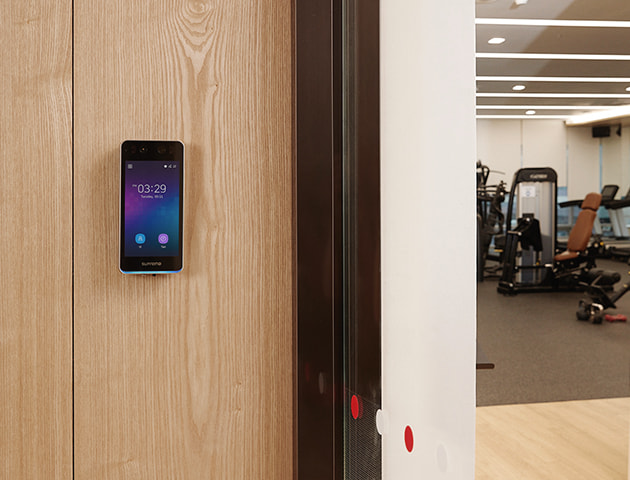

Outdoor entrances. IP65 dust + water and IK06 impact rating handle weather and traffic.

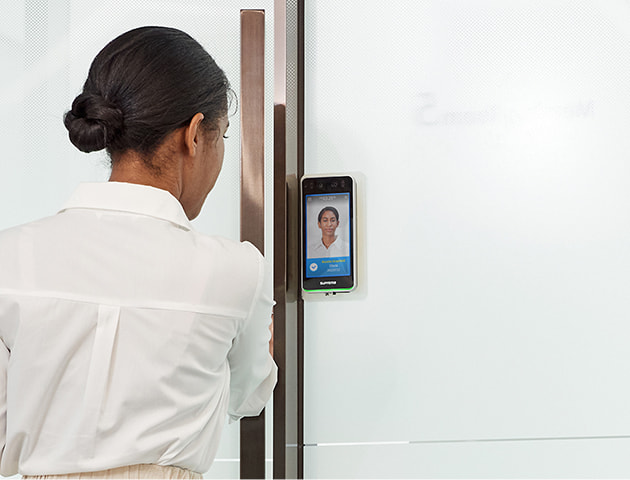

Quick installation. PoE+ delivers internet + power in a single cable — no separate PSU run.

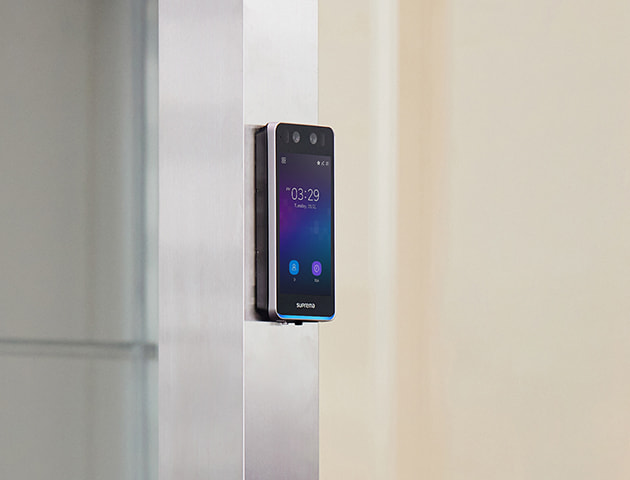

Less wiring. Wi-Fi enables wireless connection to BioStar 2 for retrofits where Ethernet isn't viable.

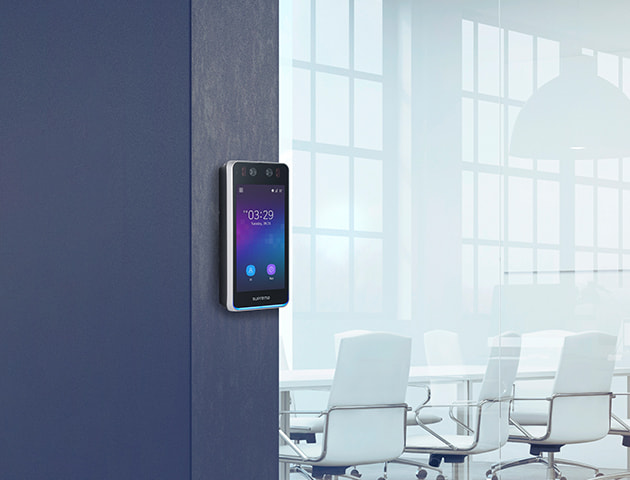

Easy to connect. USB host expansion supports RS-485 / RS-232 add-ons — bridge legacy peripherals.

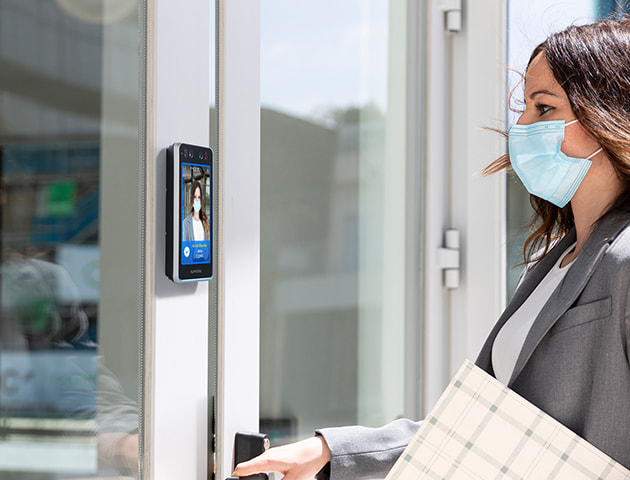

Compact footprint. 47% smaller than FaceStation F2 — purpose-built to disappear into the architecture.

AI ENGINE

AI-based facial authentication with higher efficiency and performance.

Deep-learning facial authentication with sub-0.2 s match time and 0.3–1.0 m authentication distance. The on-board NPU keeps power consumption low while sustaining accuracy across lighting conditions, ethnicities, masks and appearance variations.

Fast & smart AI. Suprema's NPU-accelerated facial AI optimised for access throughput — every reader is its own brain.

Nonstop pass-through. 0.2-second matching speed lets users walk through without breaking stride.

Every ethnicity, every variation. Accurate across skin tones, hair changes, glasses, masks and ageing — no re-enrolment.

Anti-spoof protected. IR liveness detection rejects photo, screen and basic 3D-mask spoofing attempts.

Reliable in any light. Dual IR + visual cameras compensate for low light, backlight and harsh outdoor conditions.

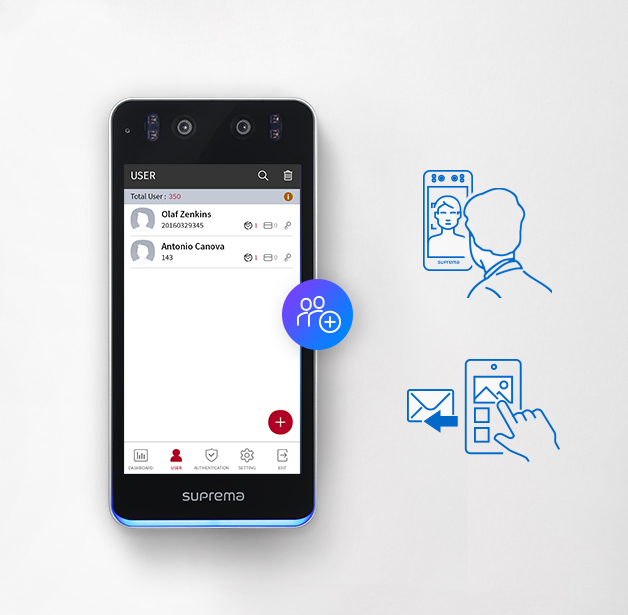

Self-enrolment in seconds. Users enrol their own face from the BioStar Mobile app — no admin queue, no on-site visit.

PRIVACY

The highest level of privacy protection.

Face Template on Mobile stores the user's facial template on their own smartphone instead of a central server — POPIA-compliant biometric authentication where the device never holds the data. Enrol once on the phone, authenticate at every reader.

INTERCOM

Easy communication across all access points.

Built-in VoIP intercom turns every BioStation 3 into a two-way communication point. SIP-compatible for native integration with existing PBX systems — visitors and unscheduled staff reach reception directly from the door, no parallel intercom hardware required.

Gallery

Specifications

General
CPU	1.5 GHz Quad Core
RAM / Flash	4 GB RAM / 32 GB Flash
Crypto Chip	Supported
Display	5.5" IPS colour LCD (720 × 1280 px)
Camera	IR 2M px + Visual 2M px
Dimensions	82.5 × 171 × 23.4 mm
Weight	370 g (device) + 90 g (bracket)
Operating Temperature	-20 °C to 50 °C
Storage Temperature	-40 °C to 70 °C
Operating Humidity	0–80% non-condensing
Storage Humidity	0-90% non-condensing
IP Rating	IP65
Impact Rating	IK06

Authentication
Authentication Distance	0.3–1.0 m
Authentication Height	1.4–1.9 m
Face Matching Speed	< 0.2 s
Live Face Detection	Supported
Face Capacity (1:N)	50,000
Face Capacity (1:1)	100,000
Card / PIN Capacity (1:1)	100,000 each
Max Users	100,000
Text Log	5,000,000
Image Log	50,000
Card Types	125 kHz EM · 13.56 MHz MIFARE / DESFire EV1-3 / FeliCa · NFC · BLE
RF Read Range (BS3-DB base)	EM / MIFARE / DESFire: 30 mm · FeliCa: 15 mm
RF Read Range (BS3-ODPB Wi-Fi)	EM / MIFARE / DESFire: 50 mm · FeliCa: 30 mm
QR / Barcode	DataMatrix, QR Code, Aztec, Micro QR, PDF417, Code39, Code128, UPC, EAN

Connectivity
Ethernet	10/100/1000 Mbps (TCP/UDP)
Wi-Fi	802.11 b/g/n 2.4 GHz (BS3-ODPB variant only)
RS-485	1ch Master/Slave — OSDP V2 compliant
Wiegand	1ch in + 1ch out
Inputs	3ch
Relay	1 relay
USB	USB 2.0 Host + expansion port
Intercom	Supported
RTSP	Supported
Power	12 V DC Max 1.0 A or 24 V DC Max 0.7 A
PoE+	IEEE 802.3at compliant (BS3-ODPB variant only)

DOWNLOAD

BioStation 3 datasheet

Full specifications, dimensions, certifications and ordering options — official Suprema datasheet PDF, mirrored locally for Suprema South Africa customers.

Preview ⇩ Datasheet (PDF) Request more docs
