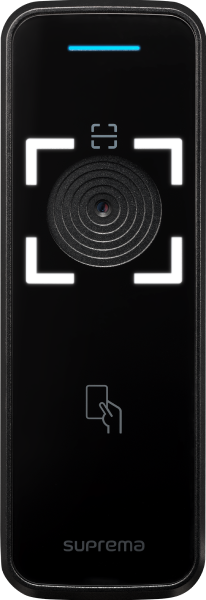

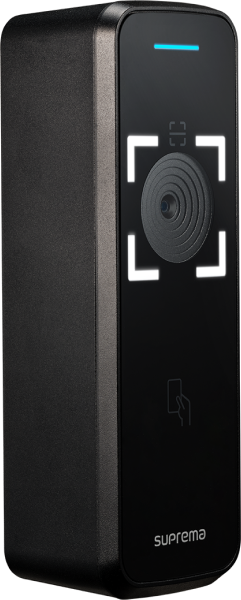

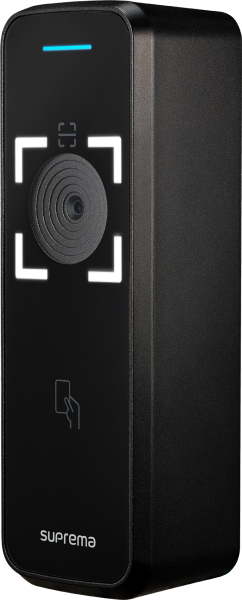

XPass Q2

Intelligent QR & RFID Reader.

Watch Video Datasheet Enquire
Inquiry

QR + BARCODE

Can it scan? Then it can.

XPass Q2 reads just about anything: QR and barcodes on cards, phones, wristbands — and the occasional wild idea. 2D codes on phones or printed passes for tickets, visitor flows, contractor passes and other app-less, temporary credentials. Throughput up to 30 people per minute.

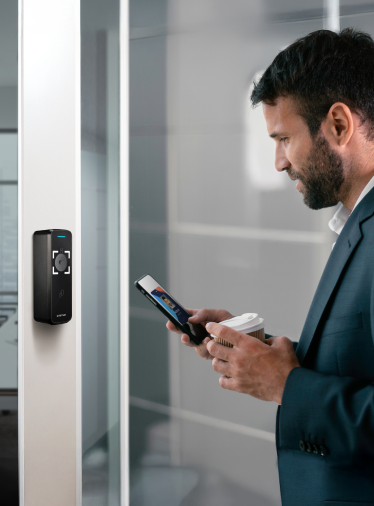

Every credential, one slim reader.

MULTI-CREDENTIAL

Every credential, one slim reader.

QR/barcode, NFC, BLE mobile, plus 125 kHz EM and 13.56 MHz MIFARE/DESFire/FeliCa RFID — combined into one mullion-form reader. Combine any two for true multi-factor where compliance demands it.

  • QR / Barcode — DataMatrix, QR Code, Aztec, Micro QR, PDF417, Code39, Code128, UPC, EAN
  • Mobile (NFC + BLE) — Phone-as-credential via BioStar Mobile
  • RFID — 125 kHz EM and 13.56 MHz MIFARE / DESFire / FeliCa
  • Door relay — Built-in relay — direct lock control, no extra controller for single-door installs

DESIGN

Sharp design that endures.

XPass Q2 combines an elegant, low-profile form with rugged construction. Its dark acrylic front and subtle lighting blend into modern architecture, while the IP65 enclosure is engineered for outdoor stadium entrances, gyms, coworking hubs, and any high-traffic site that demands both style and durability.

Clean LED-backlit scan area
Clean LED-backlit scan area. Integrated QR imaging module with a discreet illuminated scan window — guides the user without dominating the door.

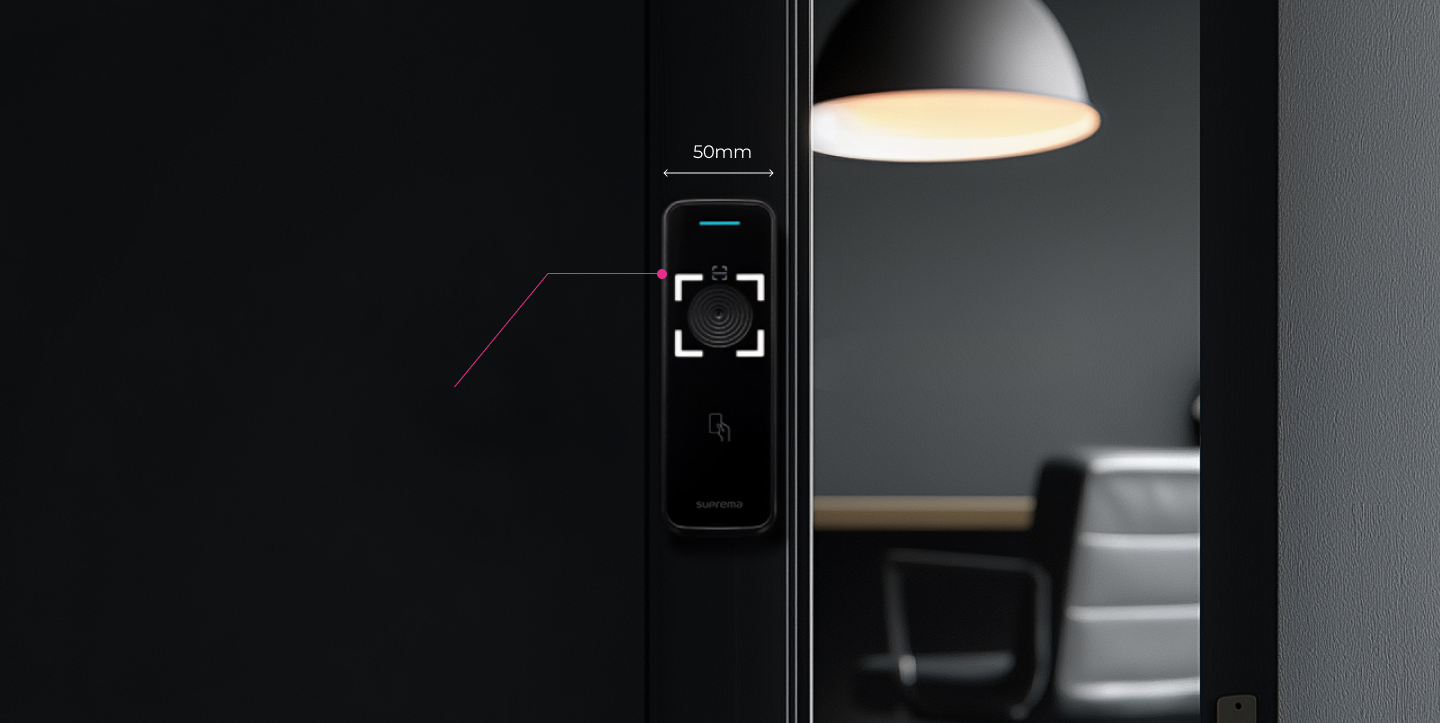

Slim mullion profile
Slim mullion profile. 50 mm width — fits any door frame, turnstile upright or glass mullion without overhang.

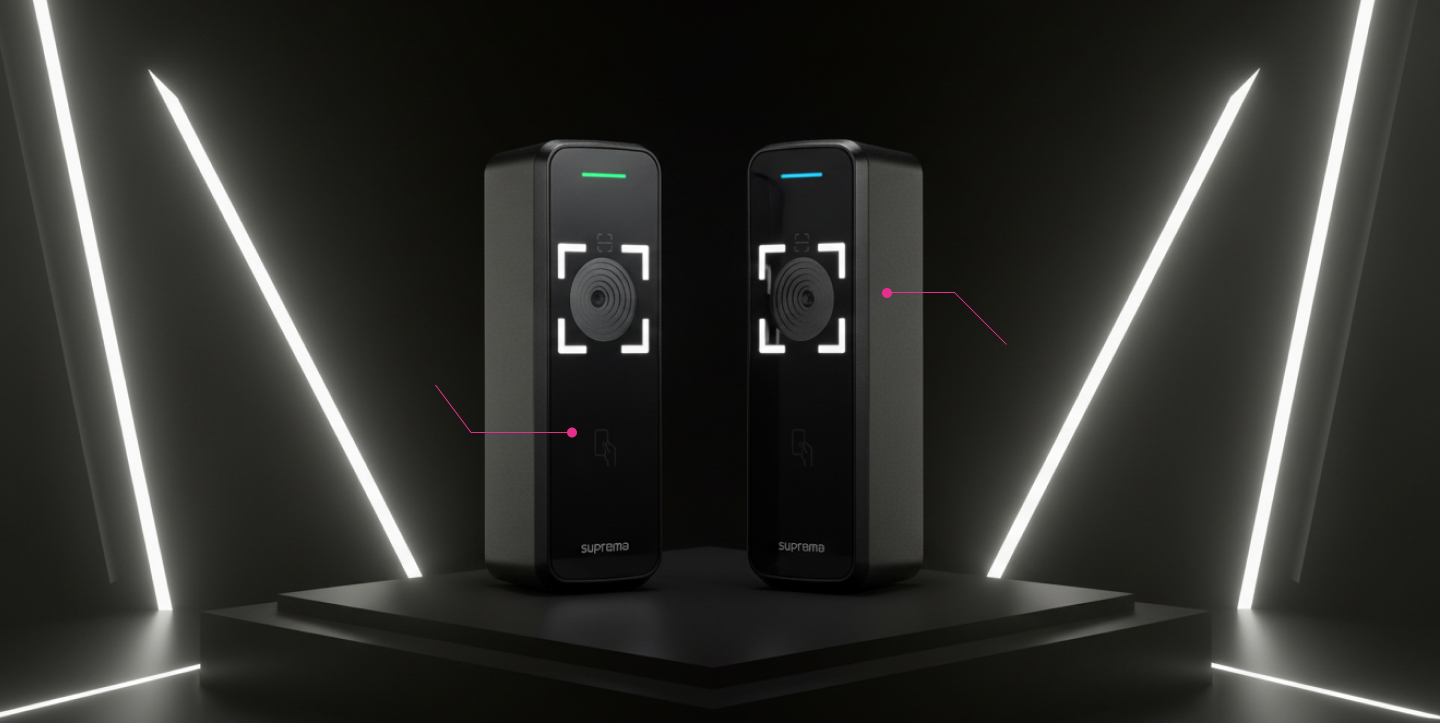

Glass-like front, black & grey
Glass-like front, black & grey. High-quality dark acrylic front + minimal black-and-grey aesthetic. Reads as part of the architecture.

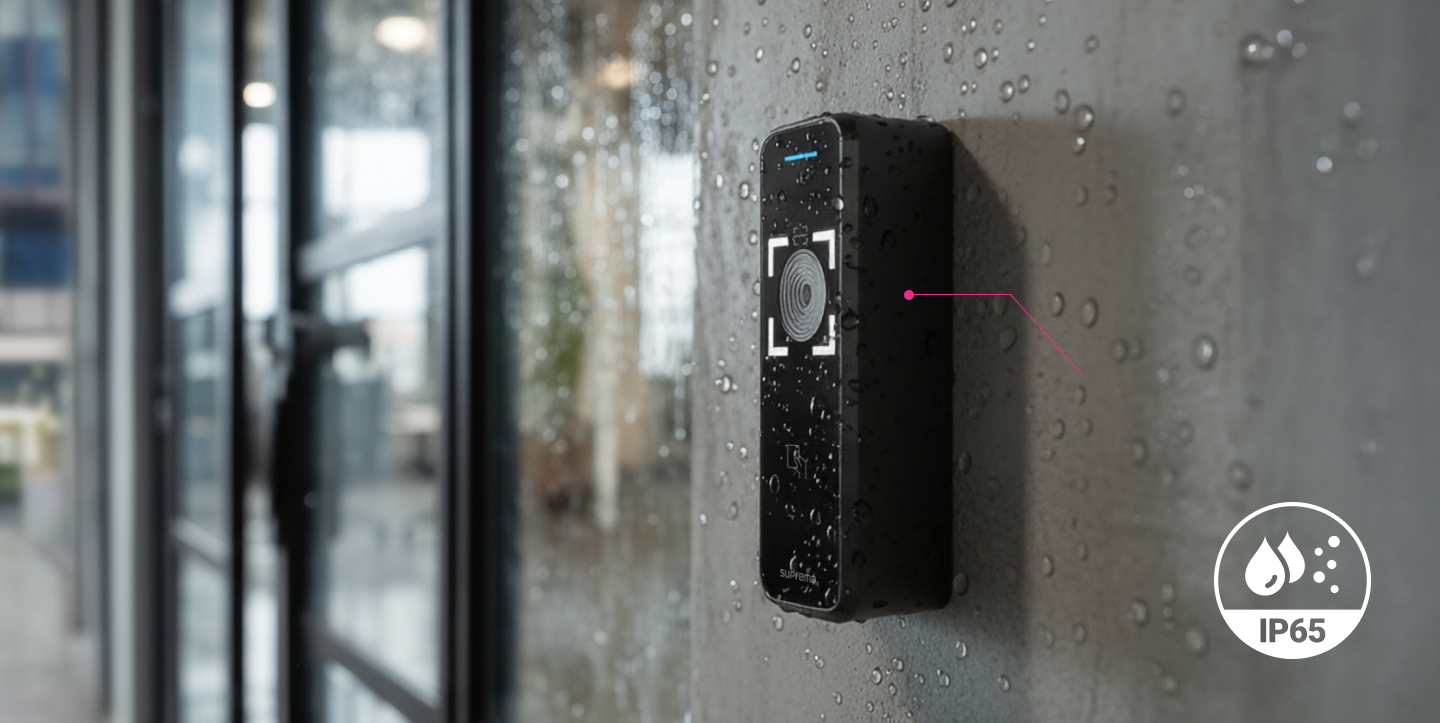

IP65 all-weather rugged
IP65 all-weather rugged. Sealed against dust and water-jets — stadium entrances, gym outdoors, coworking front-of-house.

HARDWARE

Brains, brawn, and speed to match.

Behind the slim front sits a high-performance SoC with expanded memory, integrated door relay, configurable LED + buzzer feedback and hardware-level Secure Boot. Everything you need to drive a busy door without an external controller.

High-performance processing.

1.0 GHz CPU + crypto chip — comfortable margin for QR decode + RFID match at peak load.

Fast, expanded memory.

256 MB RAM + 8 GB Flash — enterprise-scale user and log capacity on the device.

Integrated door relay.

Built-in lock-control relay — single-door deployments don't need a separate controller.

Multi-colour LED & buzzer.

Configurable LED colour palette + multi-tone buzzer for clear, unambiguous user feedback.

Secure Boot.

Cryptographically verified boot chain — only authenticated firmware runs at startup.

Tamper detection.

Real-time tamper sensors trigger immediate alert and protected-state response on physical interference.

THROUGHPUT

Keep the line grooving.

Engineered for high-traffic entrances. Optimised read range, scan distance and matching speed keep the line moving — from gym lobbies to stadium gates.

Keep the line grooving.
5–15 cm

QR / barcode scan range — comfortable presentation distance for cards, phones and wristbands.

~30 people / minute

Sustained throughput at busy entrances — ticketed events, gym turnstiles, gated communities.

1 cm

Slim depth profile — sits flush against modern lobby walls and turnstile uprights.

Specifications

General
CPU 1.0 GHz
RAM / Flash 256 MB RAM / 8 GB Flash
Crypto Chip Supported
Camera 1× (QR/barcode only)
Dimensions 50 × 150 × 40.2 mm (device)
Weight 213 g (device) + 40 g (bracket)
Operating Temperature -20 °C to 60 °C
Storage Temperature -40 °C to 70 °C
Operating Humidity 0–95% non-condensing
Storage Humidity 0-90% non-condensing
IP Rating IP65
Authentication
QR / Barcode Formats DataMatrix, QR Code, Aztec, Micro QR, PDF417, Code39, Code128, UPC-A/E, EAN-8/13
QR Scan Distance 5–15 cm
Throughput ~30 people/min
RFID Card Types 125 kHz EM · 13.56 MHz MIFARE / MIFARE Plus / DESFire EV1-3 / FeliCa
RFID Read Range EM/MIFARE/DESFire: 50 mm · FeliCa: 30 mm
Mobile NFC · BLE
Max Users (1:N / 1:1) 200,000
Text Log 1,000,000
Connectivity
Ethernet 10/100 Mbps (TCP/UDP)
RS-485 1ch Master/Slave — OSDP V2 compliant
Wiegand 1ch in/out (selectable)
Inputs 3ch
Relay 1 relay
USB USB 2.0 Type-C (firmware upgrade only) + expansion port
Tamper Supported
Power 12 V DC Max 0.5 A (no DC out) · Max 2.6 A (with DC out)
PoE Not listed

DOWNLOAD

XPass Q2 datasheet

Full specifications, dimensions, certifications and ordering options — official Suprema datasheet PDF, mirrored locally for Suprema South Africa customers.
