BioEntry W3

Simple, Durable, Secure — AI-Powered Facial Authentication Device.

BioEntry W3
Request a Quote ⇓ Download Brochure

Overview

BioEntry W3 is Suprema's AI-powered facial authentication device, combining deep-learning face recognition with a minimalist mullion-type form factor built for any door. Its Template on Mobile (ToM) technology means facial templates are stored on the user's device — never on the reader — for maximum privacy and GDPR alignment. With IP67 weatherproofing, IK08 vandal resistance and a -20 °C to 50 °C operating range, BioEntry W3 delivers reliable outdoor facial access at perimeter gates, entrances and turnstiles across South Africa.

Key Features

AI facial recognition

Deep-learning face authentication with liveness detection — works in varying lighting conditions with a 0.3–1.0 m authentication distance.

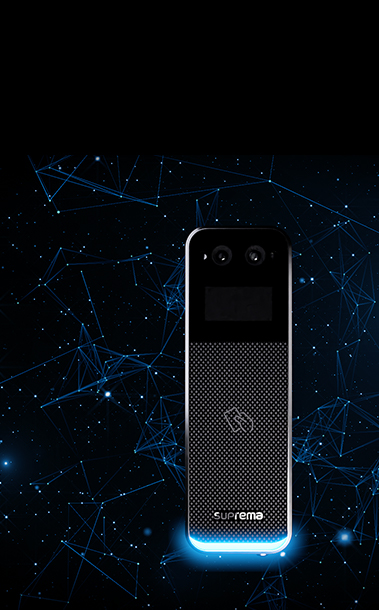

Template on Mobile (ToM)

Facial templates are stored on the user's smartphone, never on the device — eliminating biometric data exposure and simplifying POPIA compliance.

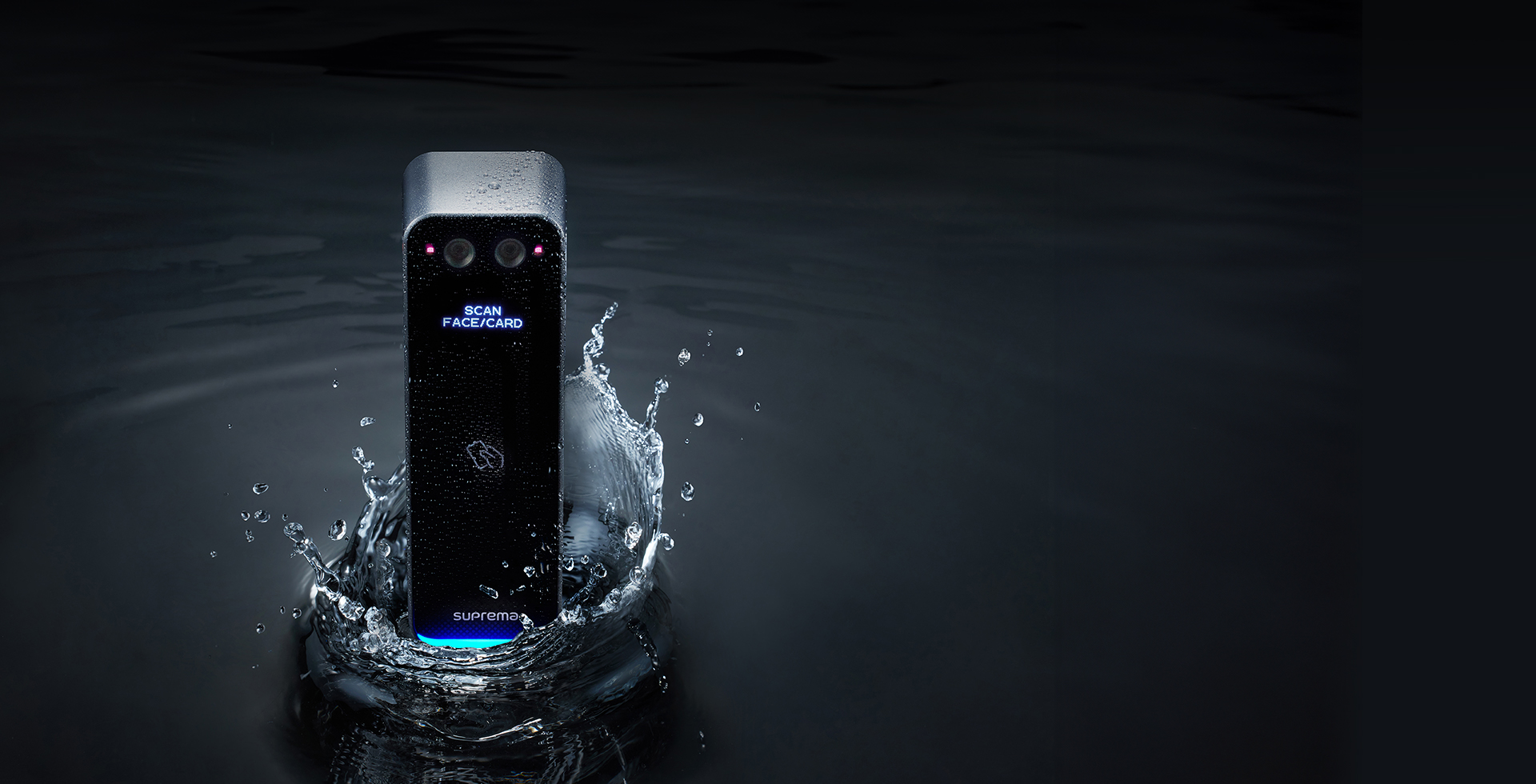

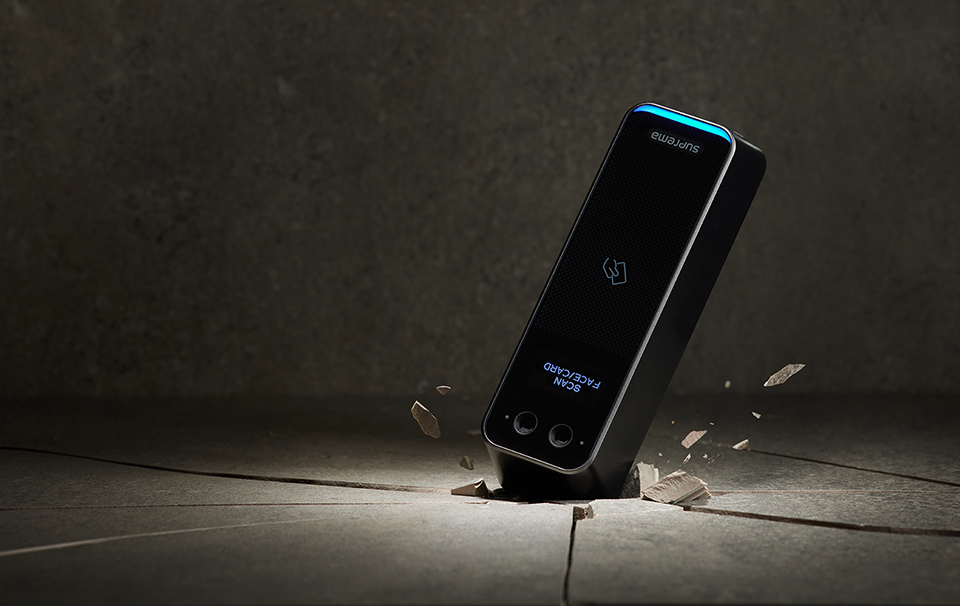

IP67 & IK08 rated

Fully weatherproof and vandal-resistant housing designed for outdoor installations in demanding South African environments.

ISO/IEC 27001 & 27701 certified

Information security and privacy management certified — the highest credential for biometric access control security.

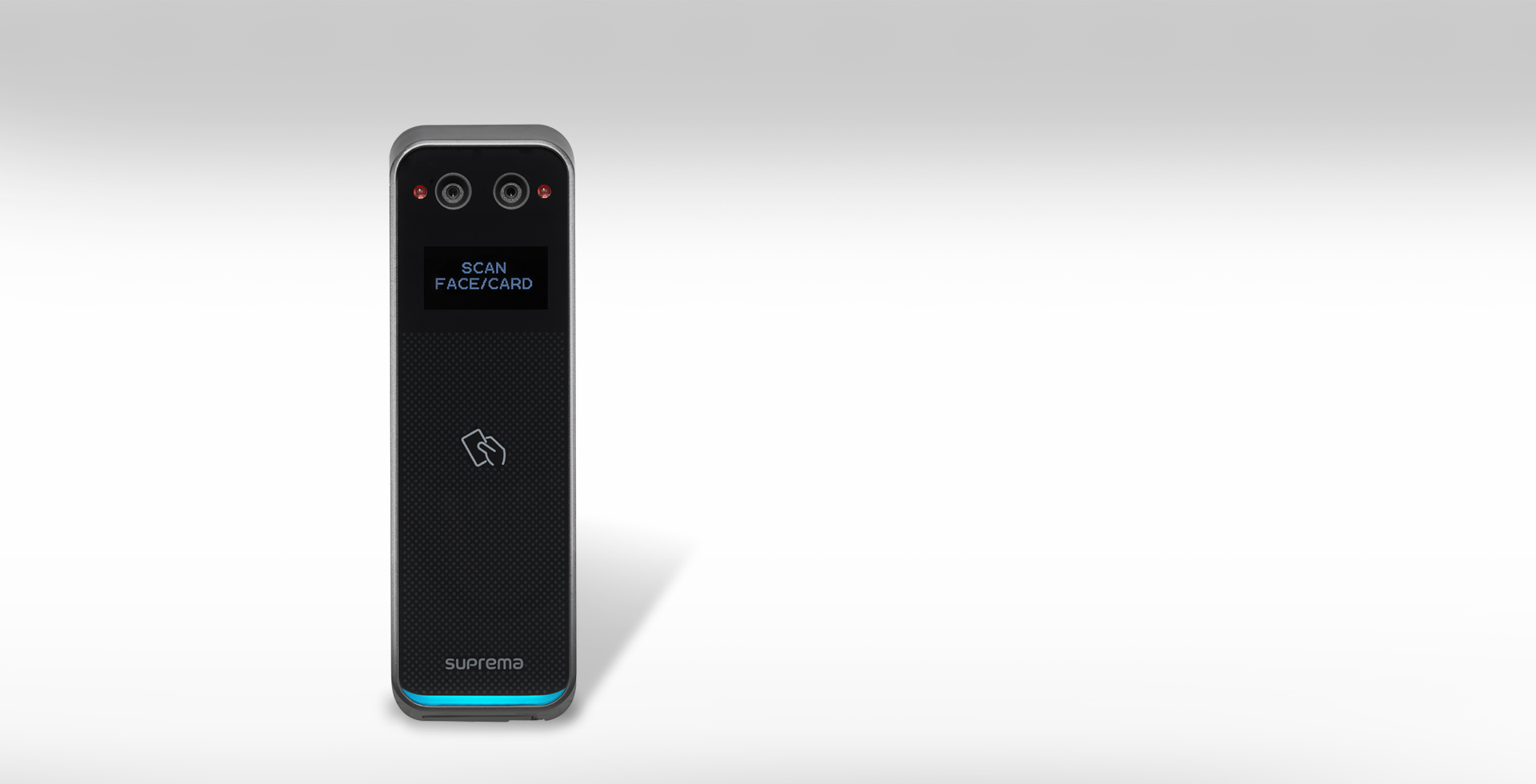

50 mm mullion form factor

Ultra-compact mullion design fits any door frame or turnstile upright — outdoor AI facial access in the tightest installation spaces.

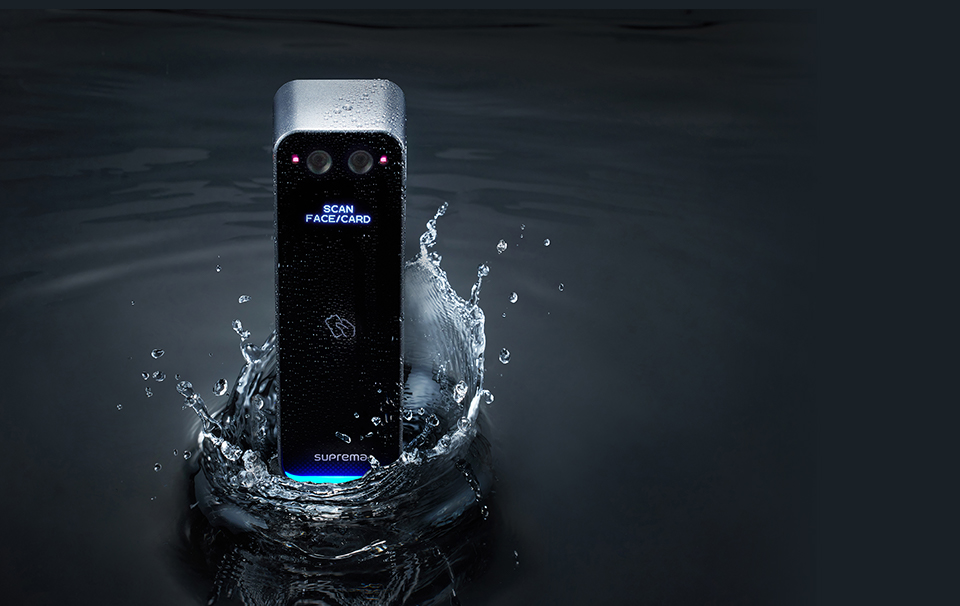

NFC and BLE mobile access

Supports NFC and BLE mobile credentials alongside RFID cards — a single device covers all credential types including smartphone-based access.

Specifications

General
CPU 1.5 GHz Quad Core
RAM / Flash 2 GB RAM / 16 GB Flash
Display 1.3" PMOLED
IR Camera 2M pixels
Visual Camera 2M pixels
Dimensions 50 × 160 × 34.15 mm
Weight 283 g (device) + 36 g (bracket)
Operating Temperature -20 °C to 50 °C
Storage Temperature -40 °C to 70 °C
Operating Humidity 0–80% non-condensing
Authentication
Authentication Distance 0.3–1.0 m
Authentication Height 1.4–1.9 m
Face Matching Speed < 0.2 s
Face Capacity (1:N) 30,000
Card Capacity 100,000
Max Users 100,000
Event Log 1,000,000 text / 10,000 image
Live Detection Supported
Card Types 125 kHz EM · 13.56 MHz MIFARE / DESFire EV1-3 / FeliCa · NFC · BLE
IP Rating IP67
Impact Rating IK08
Connectivity
Ethernet 10/100 Mbps (TCP/UDP)
RS-485 1ch Master/Slave — OSDP V2 compliant
Wiegand 1ch in/out
Relay 3 inputs + 1 relay output
USB USB 2.0 Type-C (firmware upgrade only)
Power 12 V DC Max 1.0 A or 24 V DC Max 0.6 A
PoE Not supported

Interested in BioEntry W3 for your organisation?

Talk to our South Africa team â€" we respond within one business day.

Request a Quote
