FUSION MATCHING
1 in 10 billion. The benchmark for enterprise security.
Deep-learning IR + visual face recognition combined with fingerprint matching delivers a false acceptance rate of 1 in 10 billion — the benchmark for high-security access. Designed for corporate lobbies, healthcare clinical areas, and government-grade entrances where a wrong match isn't an option.
DISPLAY
7-inch IPS touchscreen. Built for visitors.
800 × 1280 px colour display with 16-bit audio for crisp on-screen visitor guidance, multi-language signage, and clear voice feedback. Custom branding lets the terminal carry your company identity, not Suprema's.

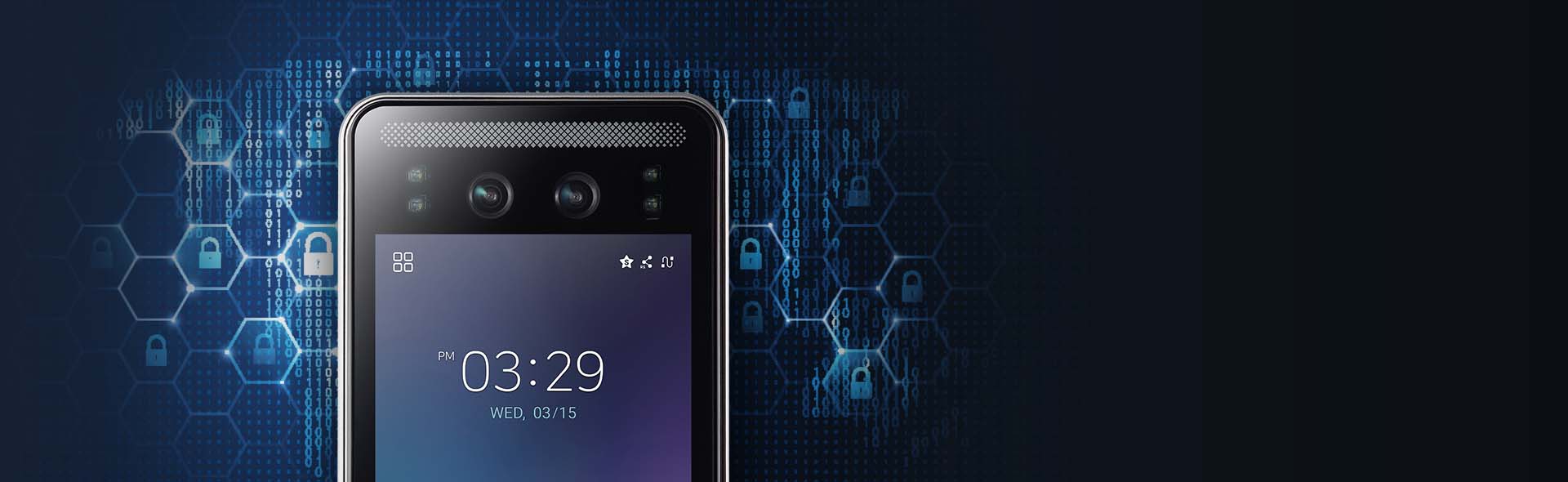

MULTI-CREDENTIAL
Every credential on a single terminal.
Face, fingerprint, 125 kHz / 13.56 MHz RFID, NFC, and BLE mobile — all on one device. Configurable multi-factor combinations let you tune authentication per door: face-only for staff entry, face + card for restricted areas, face + fingerprint for vaults.
- Face — Sub-0.5 s matching with IR liveness detection
- Fingerprint — MINEX certified, FBI PIV
- Mobile + RFID — NFC, BLE, EM, MIFARE, DESFire EV1-3, FeliCa

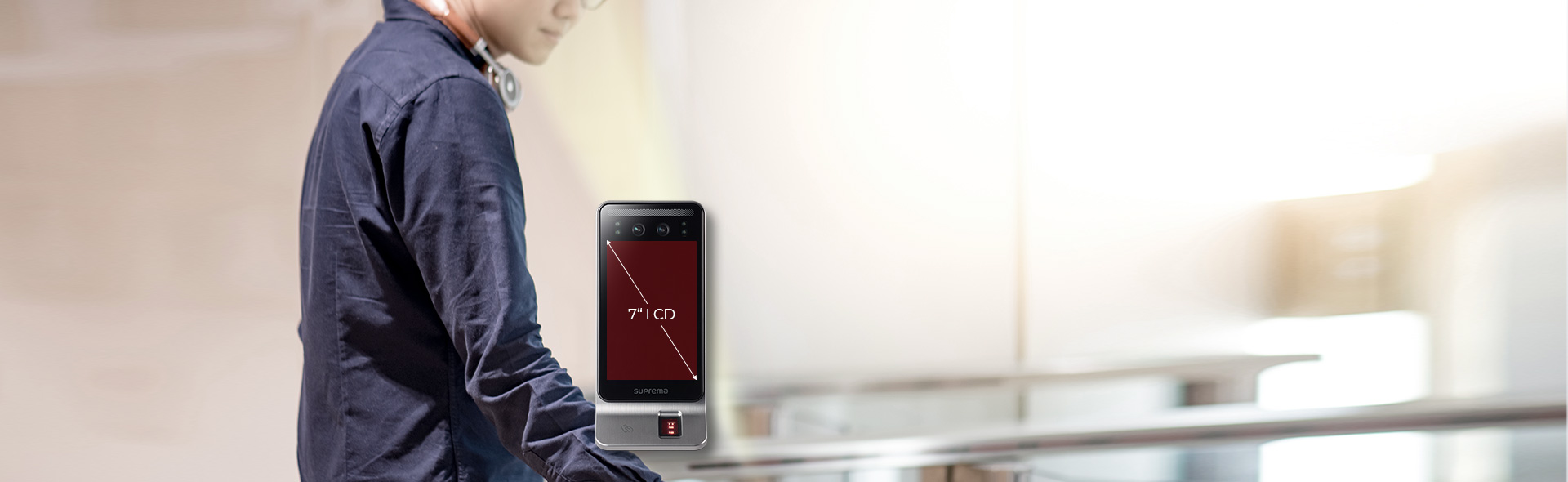

INTERCOM
Built-in intercom + RTSP video.
Two-way intercom for direct caller-to-reception communication, plus RTSP live video streaming for VMS integration — no additional camera hardware required at the door.

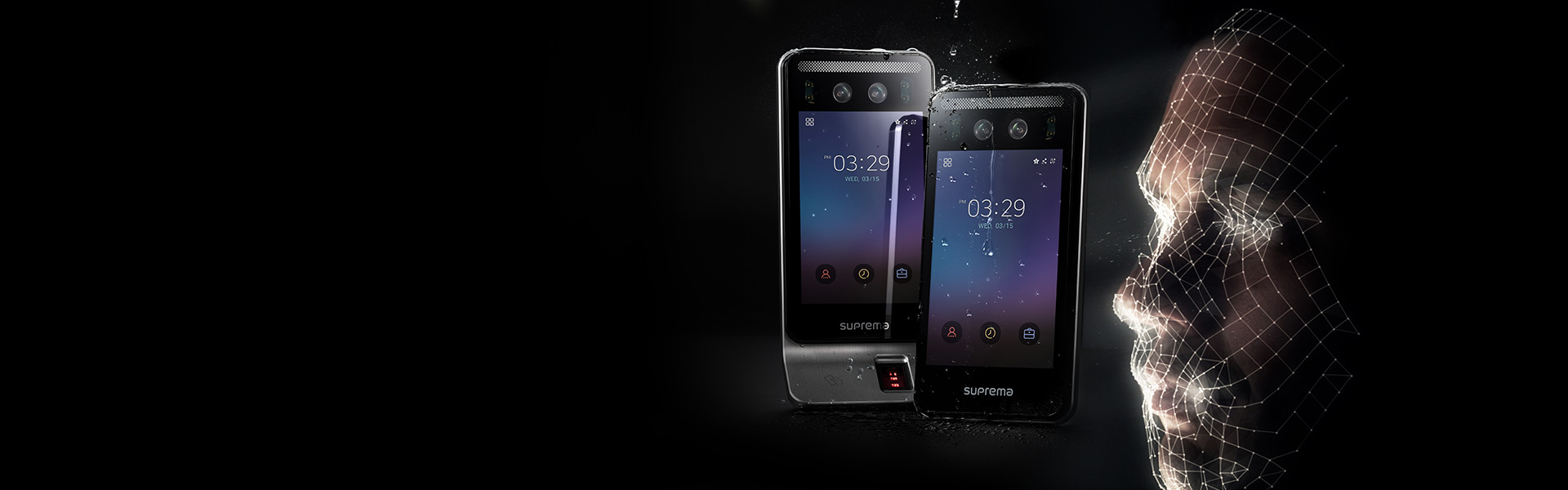

ENTERPRISE SCALE
100,000 users. 5 million events.
Engineered for enterprise capacity from day one — 100,000 face credentials, 100,000 fingerprint credentials, 5,000,000 text logs and 50,000 image logs on the device. Full BioStar 2 integration for centralised access management and T&A.
Gallery
Specifications
| General | |
|---|---|
| CPU | 1.8 GHz Dual Core + 1.4 GHz Quad Core |
| RAM / Flash | 2 GB RAM / 16 GB Flash |
| Crypto Chip | Supported |
| Display | 7" IPS colour LCD (800 × 1280 px) |
| Dimensions | 119.8 × 233 × 23.5 mm |
| Weight (FSF2-DB / FSF2-AB) | 585 g device + 181 g bracket |
| Weight (FSF2-ODB outdoor) | 670 g device + 205 g bracket |
| Operating Temperature | -20 °C to 50 °C |
| Storage Temperature | -40 °C to 70 °C |
| Operating Humidity | 0–80% non-condensing |
| Storage Humidity | 0-90% non-condensing |
| IP Rating | IP65 |
| Authentication | |
|---|---|
| Authentication Distance | 0.3–1.3 m |
| Authentication Height | 1.4–1.9 m |
| Face Matching Speed | < 0.5 s |
| Live Face Detection | Supported |
| Face Capacity (1:N) | 50,000 |
| Face / Fingerprint Capacity (1:1) | 100,000 each |
| Card / PIN Capacity (1:1) | 100,000 each |
| Fingerprint Capacity (1:N) | 100,000 |
| Max Users | 100,000 |
| Text Log | 5,000,000 |
| Image Log | 50,000 |
| Card Types | 125 kHz EM · 13.56 MHz MIFARE / DESFire EV1-3 / FeliCa · NFC · BLE |
| Connectivity | |
|---|---|
| Ethernet | 10/100 Mbps (TCP/UDP) |
| RS-485 | 1ch Master/Slave — OSDP V2 compliant |
| Wiegand | 1ch in/out (selectable) |
| Inputs | 2ch |
| Relay | 1 relay |
| USB | USB 2.0 Host |
| Power | 12 V DC Max 2.1 A or 24 V DC Max 1.0 A |
| PoE | Not listed |
DOWNLOAD
FaceStation F2 datasheet
Full specifications, dimensions, certifications and ordering options — official Suprema datasheet PDF, mirrored locally for Suprema South Africa customers.
