BioEntry W2
Outdoor IP Fingerprint Device.
Overview
BioEntry W2 is Suprema's robust outdoor fingerprint access device, built for demanding environments where reliable biometric authentication cannot be compromised. With IP67 dust and water protection, IK09 impact resistance and a broad temperature range, BioEntry W2 is the trusted choice for South African outdoor entry points — boom gates, turnstiles, factory perimeters and secure facility access. Full NFC and BLE mobile credential support means BioEntry W2 works alongside card, PIN and fingerprint authentication — covering every credential type your site requires.
Key Features
IP67 & IK09 outdoor rated
Fully sealed against dust, rain immersion and vandal impact — engineered for South African outdoor installations.
MINEX-certified fingerprint
Suprema's ISO 19794-2 / ANSI 378 fingerprint algorithm with hardware + software liveness detection.
Mobile, card & PIN credentials
Supports NFC and BLE mobile access alongside 125 kHz / 13.56 MHz RFID cards — including HID and iCLASS.
PoE powered
IEEE 802.3af Power over Ethernet — single cable installation reduces wiring costs and complexity.

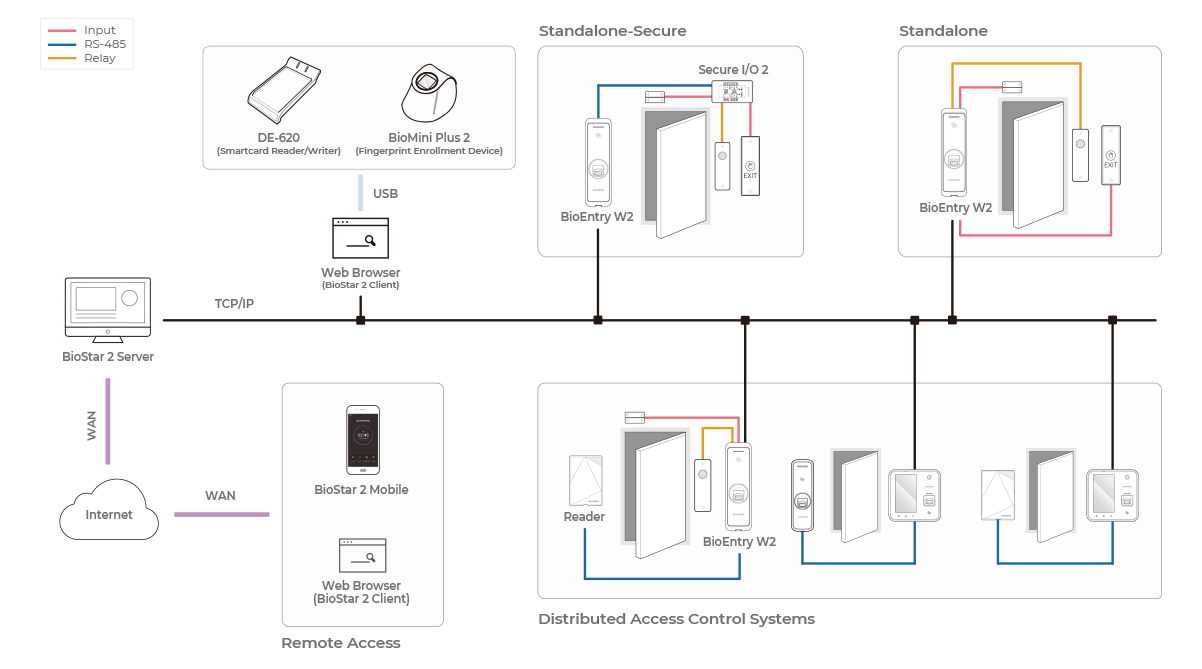

Gallery
Specifications
| General | |
|---|---|
| CPU | 1.2 GHz Quad Core |
| RAM / Flash | 256 MB RAM / 2 GB Flash |
| Crypto Chip | Supported |
| Dimensions | 50 × 172 × 43 mm |
| Weight | 251 g (device) + 43 g (bracket) |
| Operating Temperature | -20 °C to 50 °C |
| Storage Temperature | -40 °C to 70 °C |
| Operating Humidity | 0–80% |
| IP Rating | IP67 |
| Impact Rating | IK09 |
| Authentication | |
|---|---|
| Fingerprint Standard | ISO 19794-2 / ANSI 378 (MINEX certified) |
| Live Detection | Hardware + Software |
| Fingerprint Capacity (1:N) | 100,000 |
| Fingerprint Capacity (1:1) | 500,000 |
| Card Capacity | 500,000 |
| Max Users | 500,000 |
| Event Log | 1,000,000 text |
| Card Types | 125 kHz EM / HID Prox · 13.56 MHz MIFARE / DESFire EV1-3 / FeliCa / iCLASS SE/SR/Seos · NFC · BLE |
| Connectivity | |
|---|---|
| Ethernet | 10/100 Mbps (TCP/UDP) |
| RS-485 | Supported |
| Wiegand | 1ch in/out selectable + 2ch inputs |
| Relay | 1 relay output |
| SD Card | Supported |
| Power | 12 V DC Max 0.5 A |
| PoE | IEEE 802.3af compliant |
