BioLite N2
Outdoor IP Fingerprint Terminal.
Overview

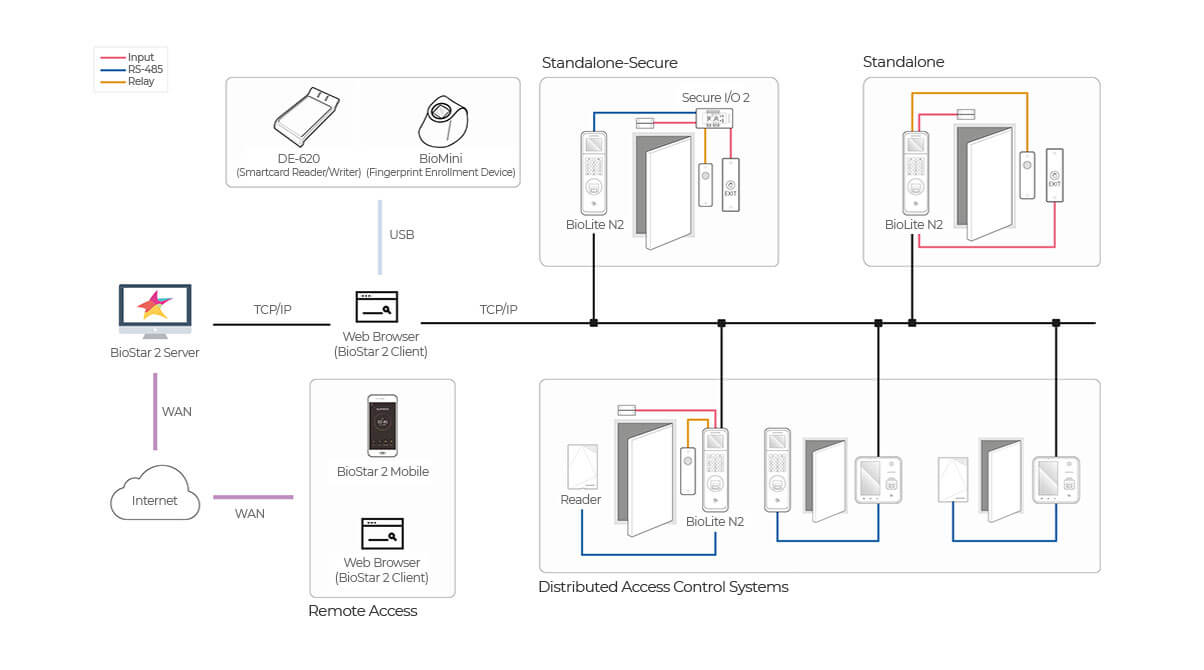

BioLite N2 is Suprema's outdoor fingerprint terminal, combining a robust IP67-rated housing with MINEX-certified fingerprint recognition, a 1.77" colour TFT LCD display and full NFC/BLE mobile credential support. Designed for perimeter gates, industrial plants and construction sites across South Africa, BioLite N2 handles the contaminated, wet and calloused fingers common in demanding work environments. With PoE power, standalone operation capability and BioStar 2 managed deployment, BioLite N2 covers everything from a remote gate to a multi-site campus.
Key Features
IP67 outdoor rated
Fully weatherproof and sealed against dust, rain immersion and high-pressure water jets — built for South African outdoor environments.
Colour TFT LCD display
1.77" colour display with 16-bit depth for user-friendly operation and real-time feedback at site entry points.
NFC & BLE mobile credentials
Supports NFC and BLE smartphone access alongside fingerprint, RFID card and PIN authentication.
MINEX-certified fingerprint
ISO 19794-2 / ANSI 378 fingerprint algorithm with software liveness detection, reliable even with contaminated fingers.
Gallery
Specifications
| General | |
|---|---|
| CPU | 1.2 GHz |
| RAM / Flash | 64 MB RAM / 4 GB Flash |
| Display | 1.77" colour TFT LCD (16-bit) |
| Crypto Chip | Supported |
| Dimensions | 58 × 190 × 44 mm |
| Weight | 255 g (device) + 57 g (bracket) |
| Operating Temperature | -20 °C to 50 °C (standard) / -10 °C to 50 °C (Peltier model) |
| Storage Temperature | -40 °C to 70 °C (standard) |
| Operating Humidity | 0–80% |
| IP Rating | IP67 |
| Authentication | |
|---|---|
| Fingerprint Standard | ISO 19794-2 / ANSI 378 (MINEX certified) |
| Live Detection | Software |
| Fingerprint / Card / PIN Capacity | 10,000 |
| Max Users | 10,000 |
| Event Log | 1,000,000 text |
| Card Types | 125 kHz EM / HID Prox · 13.56 MHz MIFARE / DESFire EV1-3 / FeliCa / iCLASS SE/SR/Seos · NFC · BLE 2.4 GHz |
| Connectivity | |
|---|---|
| Ethernet | Supported (TCP/UDP) |
| RS-485 | Supported |
| Wiegand | 1ch in/out selectable + 2ch inputs |
| Relay | 1 relay output |
| Power | 12 V DC Max 0.4 A |
| PoE | Supported |
