DI-24

Multi-Door RS-485 Interface Module.

DI-24
Request a Quote

Overview

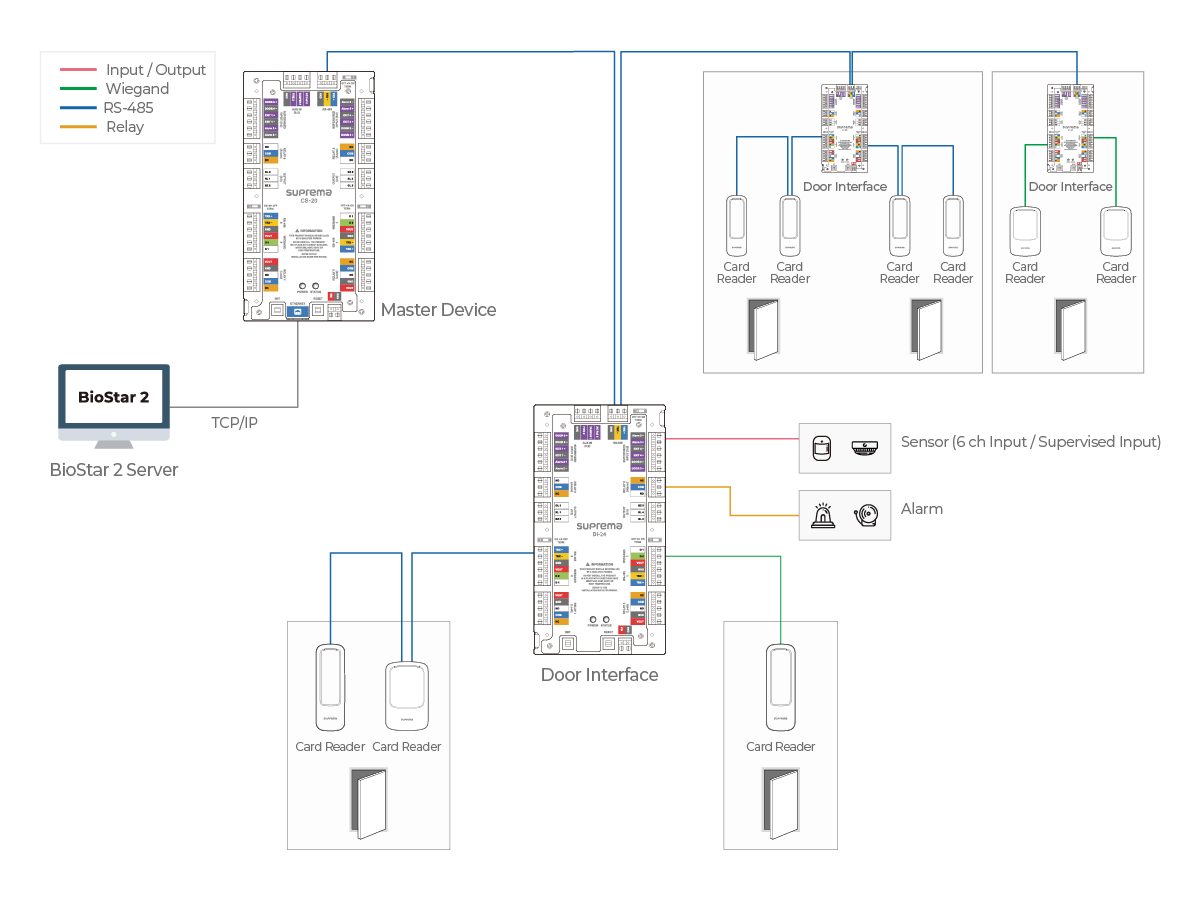

DI-24 is Suprema's multi-door RS-485 interface module, enabling direct connection of up to four Wiegand or RS-485 OSDP readers to CoreStation over a single RS-485 bus. With three RS-485 channels, four relay outputs and six supervised inputs, DI-24 expands CoreStation's door coverage while maintaining encrypted OSDP V2 communication throughout the access control system. Rated IP65 with a 1.2 GHz processor, 4 GB Flash and 256 MB RAM, DI-24 is designed for demanding enterprise and industrial deployments where reliable, large-scale multi-door control is required.

Key Features

3-channel RS-485 interface

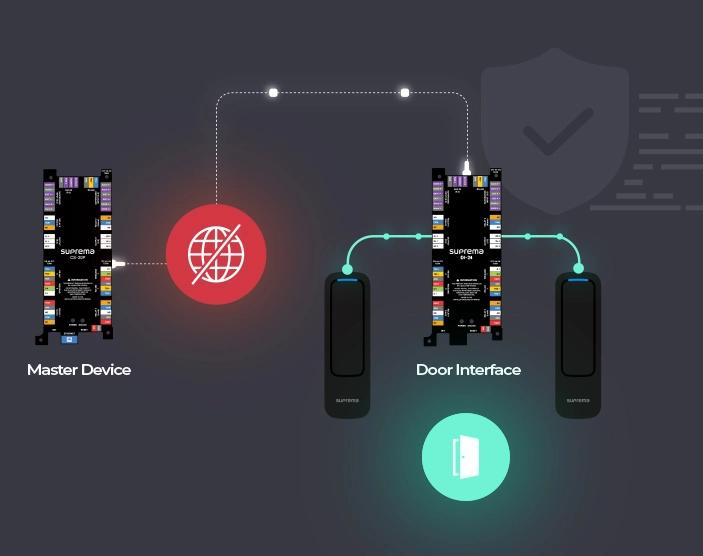

Three independent RS-485 OSDP V2 channels connect readers, input modules and output modules — all managed through CoreStation.

4 relay outputs

Four independently controlled relay outputs for electric strikes, mag-locks and auxiliary devices — one per door.

6 supervised inputs

6 supervised input channels plus 3 AUX inputs (AC power fail, tamper, fire) — complete door-state and alarm monitoring.

IP65 rated

Dust-tight and water-resistant housing with Wiegand 2-channel input — integrates legacy readers alongside OSDP readers.

Specifications

General
CPU 1.2 GHz Single Core
RAM / Flash 256 MB RAM / 4 GB Flash
Dimensions 100 × 190 × 33.9 mm
Weight 279 g
Operating Temperature 0 °C to 50 °C
Storage Temperature -40 °C to 70 °C
Operating Humidity 0–80% non-condensing
IP Rating IP65
Text Log 400
I/O
RS-485 Channels 3ch — OSDP V2 compliant
Wiegand Inputs 2ch
Inputs 6ch (selectable or supervised)
Supervised Inputs 6ch
AUX Inputs 3ch (AC POWER FAIL · Tamper · Fire)
Relay Outputs 4
Connectivity
Communication RS-485 to CoreStation
Power 12 V DC Max 2.8 A or 24 V DC Max 1.4 A
