XPass D2
Compact Outdoor RFID Reader.
Overview
XPass D2 is Suprema's compact outdoor RFID reader, combining dual-frequency 125 kHz / 13.56 MHz RFID with NFC and BLE mobile credential support in a robust IP65/IP67, IK08-rated housing. Available in mullion-mount (48 mm width), gangbox-type and gangbox keypad-type form factors, XPass D2 adapts to gates, doors and access points in any outdoor environment. With OSDP V2 RS-485 slave communication and Wiegand output, XPass D2 integrates into both Suprema CoreStation deployments and third-party access controllers — making it the go-to RFID reader for outdoor perimeter and door access.
Key Features
Dual-frequency RFID
Reads 125 kHz EM and 13.56 MHz MIFARE / MIFARE Plus / DESFire EV1-3 / FeliCa — no card-type restrictions at the gate.
NFC & BLE mobile access
Smartphone credentials via NFC and BLE alongside physical cards — a single reader covers all credential types.
IP67 & IK08 rated
Fully dust and waterproof with IK08 vandal-resistant housing — sealed for the harshest South African outdoor conditions.

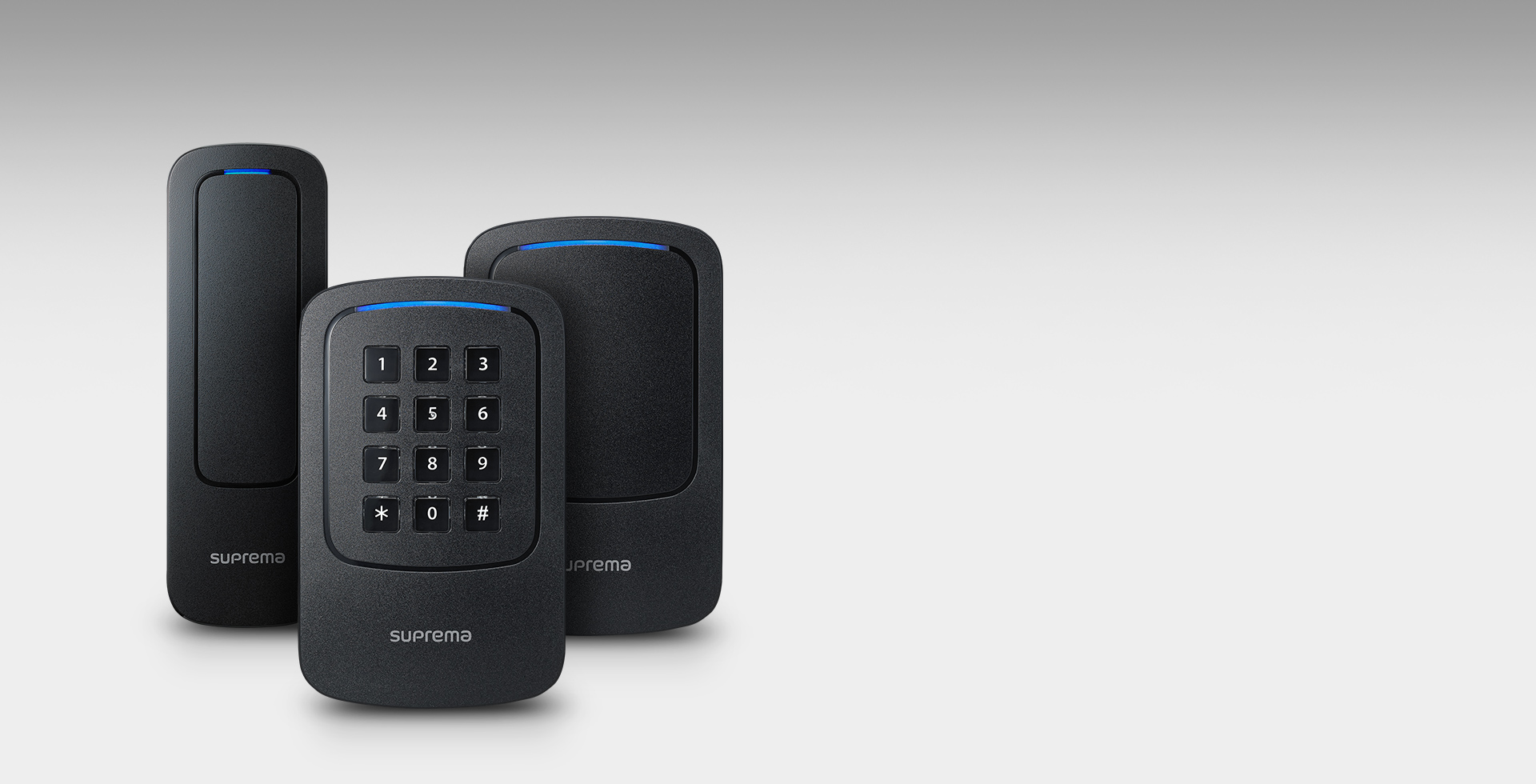

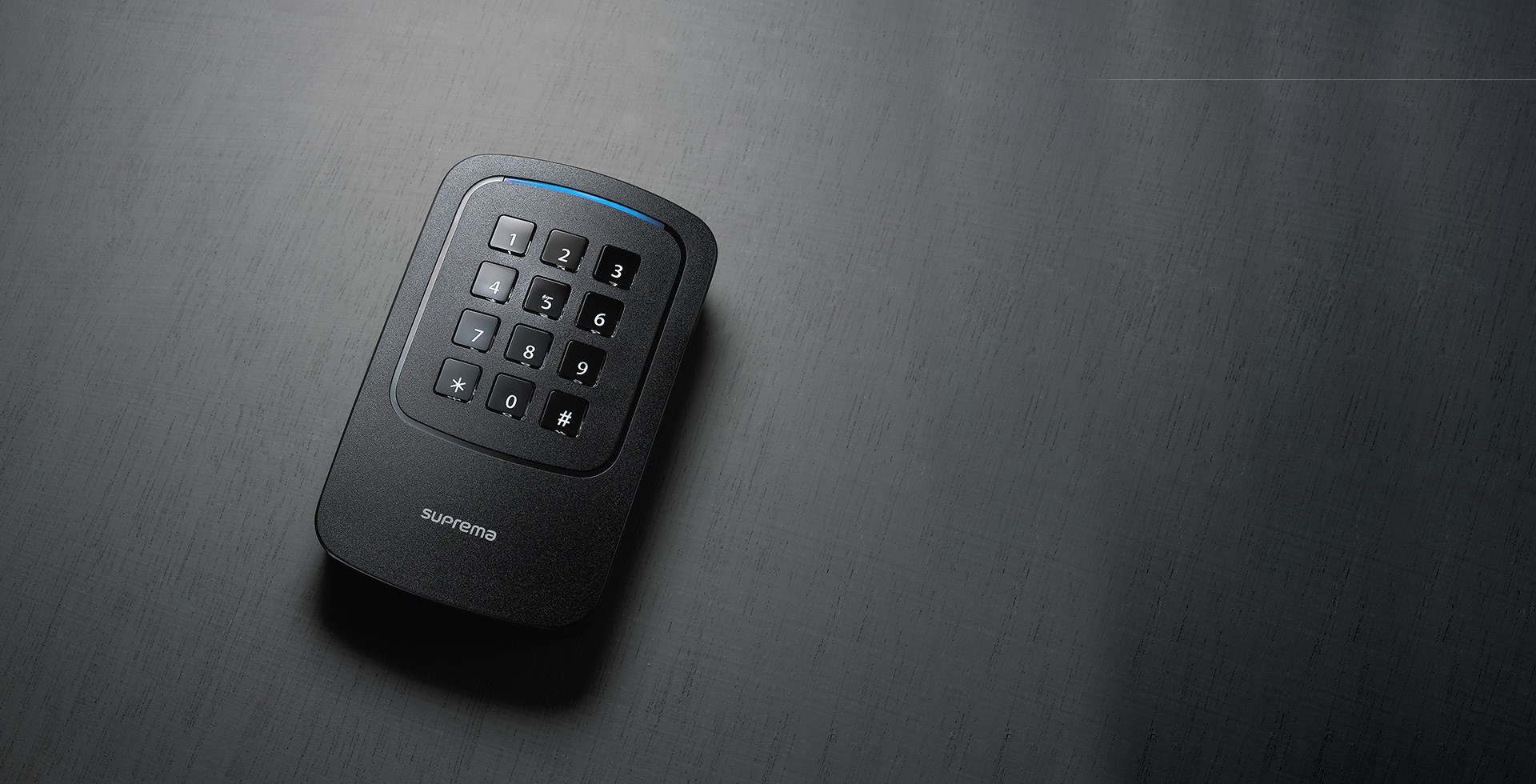

Three form factors
48 mm mullion-mount for narrow door frames; gangbox-type and gangbox keypad-type variants for all other installation positions.
Gallery
Specifications
| General | |
|---|---|
| CPU | 80 MHz |
| Memory | 512 KB Flash + 160 KB RAM |
| Crypto Chip | Supported |
| Form Factors | Mullion-mount (48 × 144.7 × 27 mm) · Gangbox-type (80 × 130 × 25 mm) · Gangbox Keypad-type (80 × 130 × 25 mm) |
| Weight | 117 g device / 30 g bracket (mullion) · 140 g device / 52 g bracket (gangbox) |
| Operating Temperature | -35 °C to 65 °C |
| Storage Temperature | -40 °C to 70 °C |
| Operating Humidity | 0–95% non-condensing |
| IP Rating | IP65 / IP67 |
| Impact Rating | IK08 |
| Authentication | |
|---|---|
| RFID (Low Frequency) | 125 kHz EM |
| RFID (High Frequency) | 13.56 MHz MIFARE / MIFARE Plus / DESFire EV1-3 / FeliCa |
| RFID Read Range | MIFARE / DESFire / EM: 50 mm · FeliCa: 30 mm |
| Mobile | NFC · BLE |
| Connectivity | |
|---|---|
| RS-485 | 1ch Slave — OSDP V2 compliant |
| Wiegand | 1ch output |
| Ethernet | Not supported |
| Tamper | Supported |
| Power | 12 V DC Max 0.3 A |
