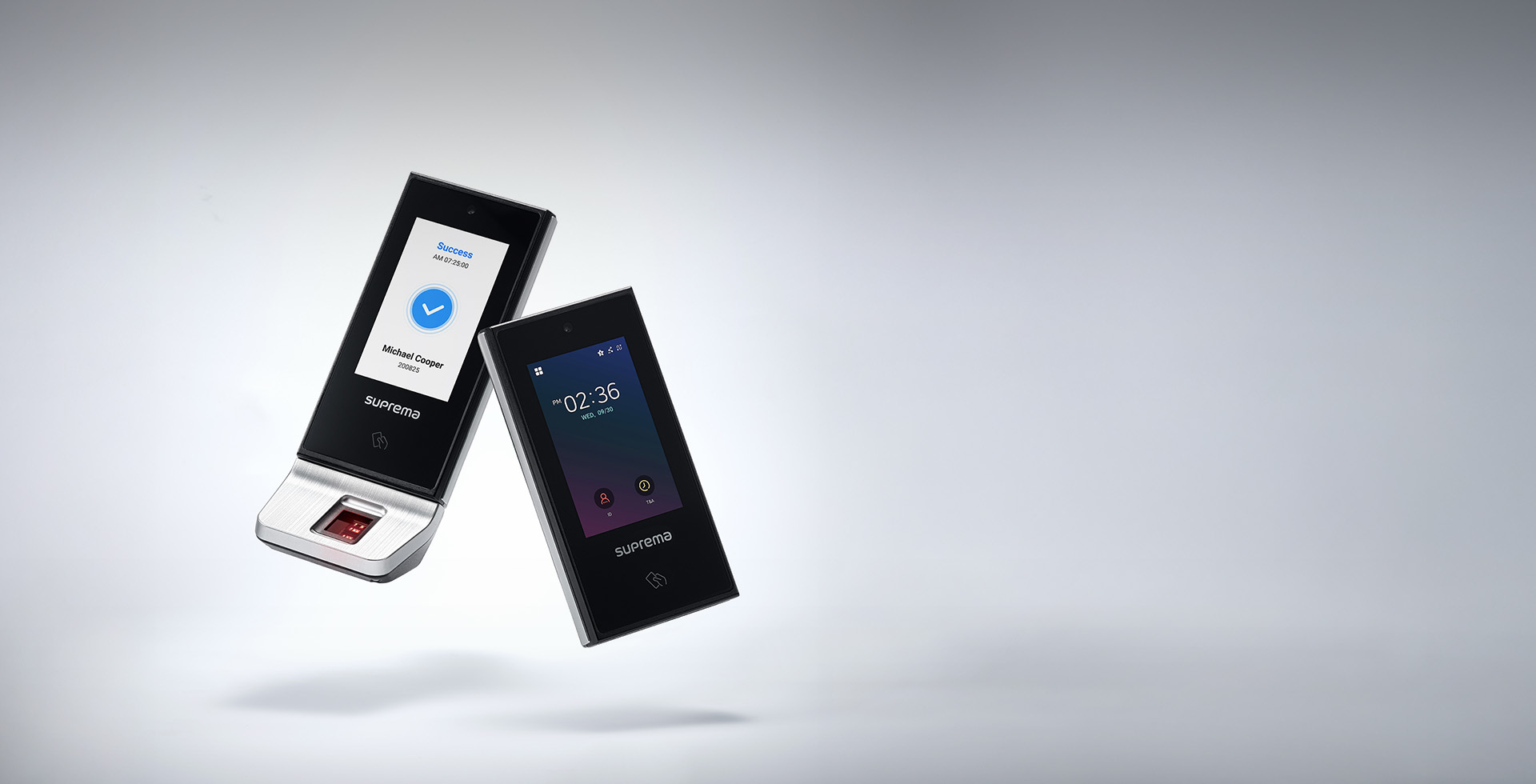

X-Station 2

Versatile Intelligent Terminal.

X-Station 2
Request a Quote ⇓ Download Brochure

Overview

X-Station 2 is Suprema's versatile intelligent terminal — the most credential-flexible terminal in its class. Supporting fingerprint, face, QR/barcode, NFC, BLE, 125 kHz and 13.56 MHz RFID with optional HID iCLASS and Seos, X-Station 2 serves as a single reader for every credential type your organisation uses today or may adopt tomorrow. With a 4" IPS touchscreen, 500,000-user capacity, 5 million text log storage, OSDP V2, PoE and IP65, X-Station 2 is built for enterprise lobbies, data centres and any deployment requiring maximum credential interoperability alongside BioStar 2 or third-party access controllers.

Key Features

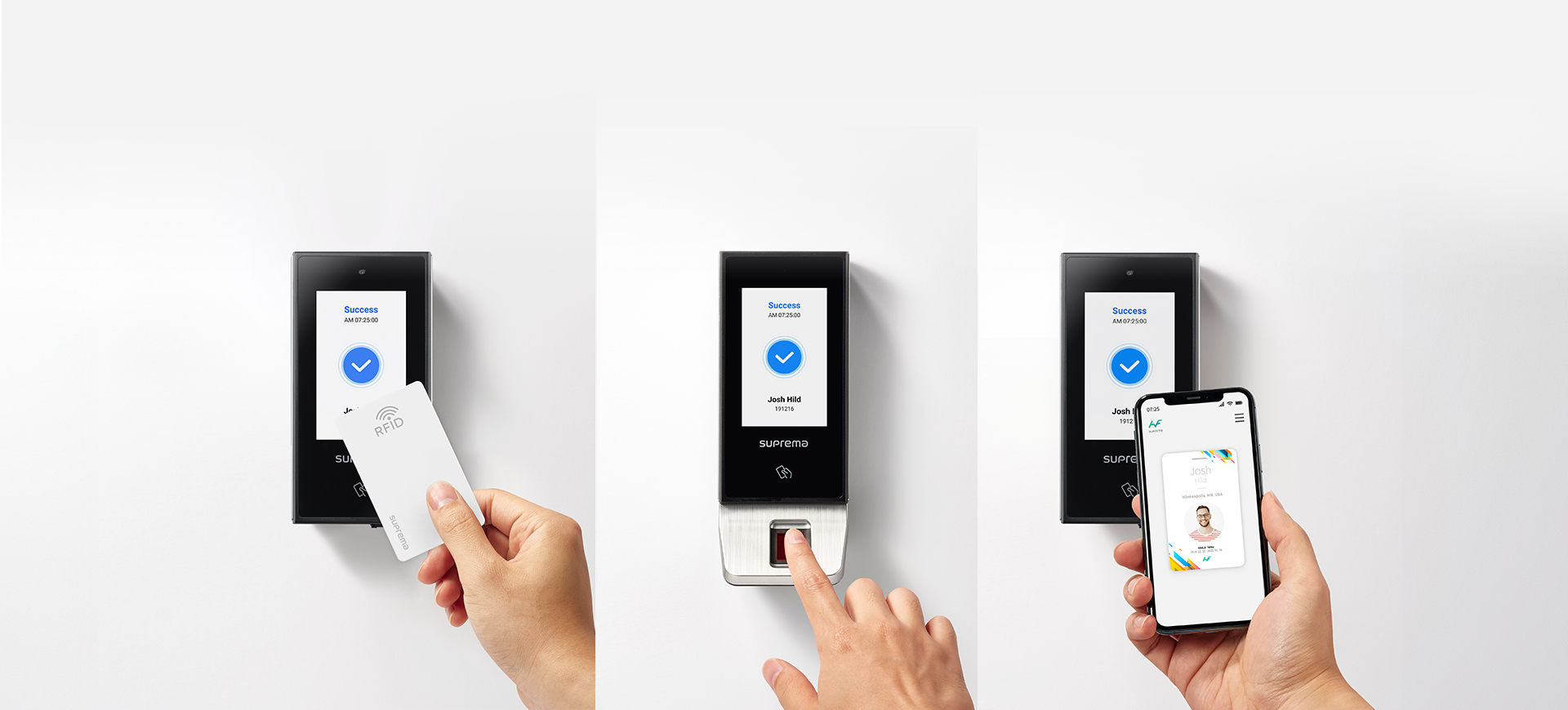

Widest credential support

Fingerprint, QR/barcode, NFC, BLE, 125 kHz EM and 13.56 MHz MIFARE/DESFire/FeliCa — one terminal covers every credential type including optional HID iCLASS and Seos.

4" IPS touchscreen

480 × 800 px colour display with 2 MP camera, multi-tone buzzer and multi-colour LED — clear user feedback at every interaction.

500,000 users, 5M log capacity

16 GB Flash + 1 GB RAM supports 500,000 users, 5 million text logs and 50,000 image logs — enterprise memory without an external controller.

PoE & OSDP V2

IEEE 802.3af PoE for single-cable installation; OSDP V2 RS-485 for encrypted controller communication — or standalone with built-in relay.

Specifications

General
CPU 1.5 GHz Quad Core
RAM / Flash 1 GB RAM / 16 GB Flash
Crypto Chip Supported
Display 4" IPS colour LCD (480 × 800 px)
Camera CMOS 2M px (1600 × 1200)
Dimensions 82 × 208.5 × 53 mm (with fingerprint) · 82 × 159 × 25.9 mm (RFID-only)
Weight 375 g (device) + 86 g (bracket)
Operating Temperature -20 °C to 50 °C
Storage Temperature -40 °C to 70 °C
Operating Humidity 0–80% non-condensing
IP Rating IP65
Authentication
Max Users 500,000
Text Log 5,000,000
Image Log 50,000
Fingerprint (1:N) 100,000
Fingerprint Standard ISO 19794-2 / ANSI 378 (MINEX certified, FBI PIV FAP20)

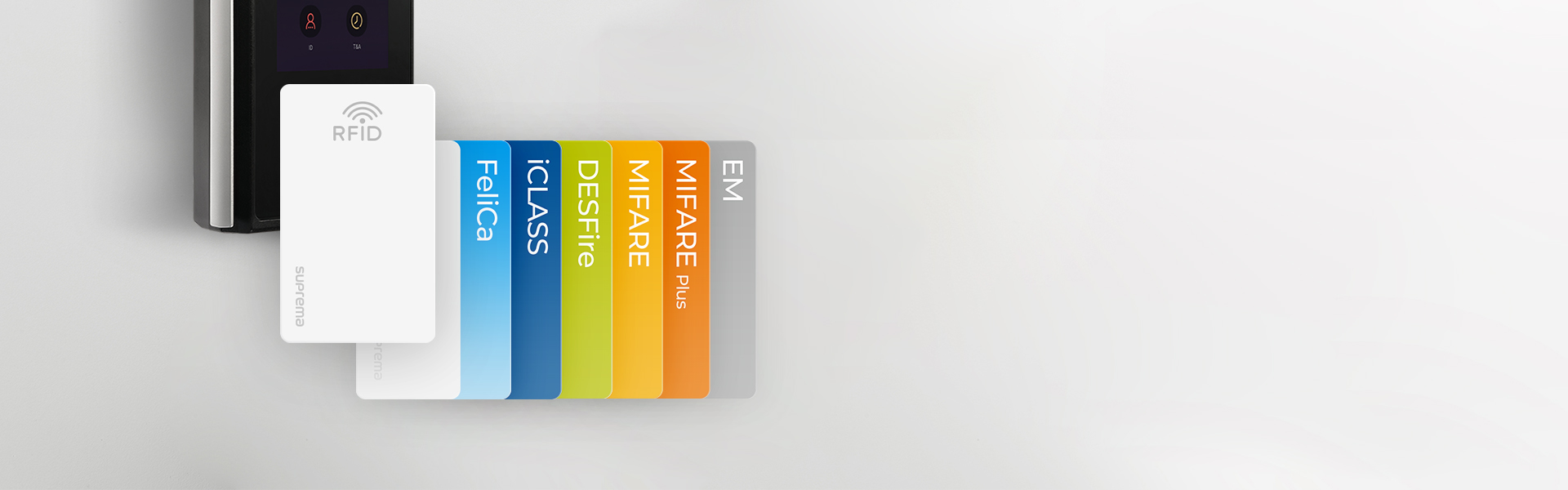

RFID (Low Frequency) 125 kHz EM (· HID Prox / iCLASS on -OA models)
RFID (High Frequency) 13.56 MHz MIFARE / MIFARE Plus / DESFire EV1-3 / FeliCa
RFID Read Range MIFARE / DESFire / EM: 50 mm · FeliCa: 30 mm
Mobile NFC · BLE
QR / Barcode Supported (software-based)
Connectivity
Ethernet 10/100 Mbps (TCP/UDP)
RS-485 1ch Master/Slave — OSDP V2 compliant
Wiegand 1ch in/out (selectable)
Inputs 2ch
Relay 1 relay
USB USB 2.0 Host
PoE IEEE 802.3af
Power 12 V DC Max 0.8 A or 24 V DC Max 0.5 A
